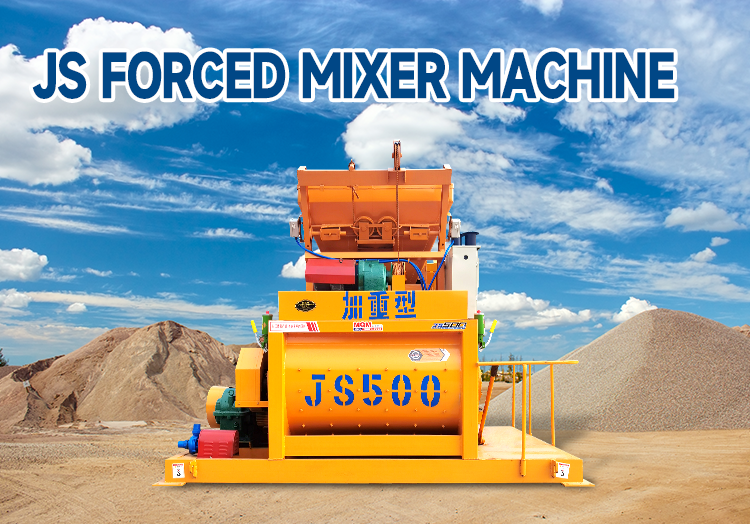

JS Forced Mixer Machine
Home> Products >  Concrete equipment >  JS Forced Mixer Machine

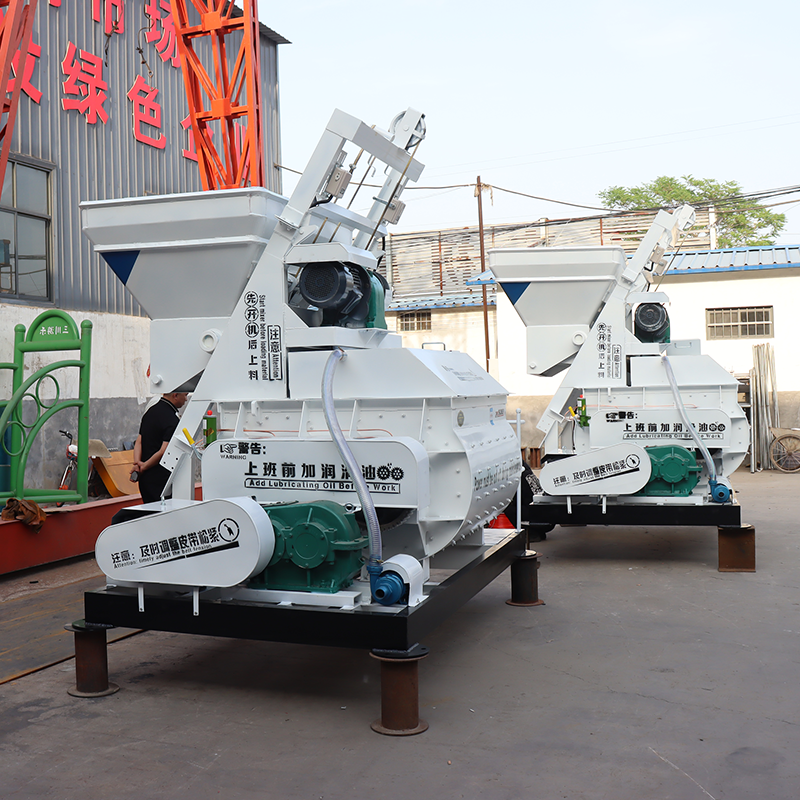

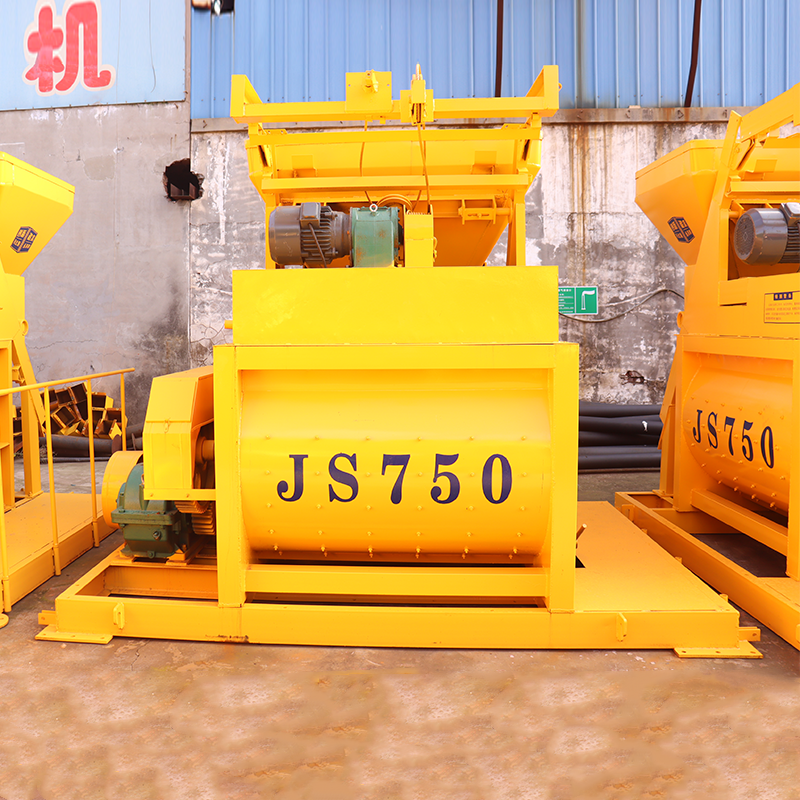

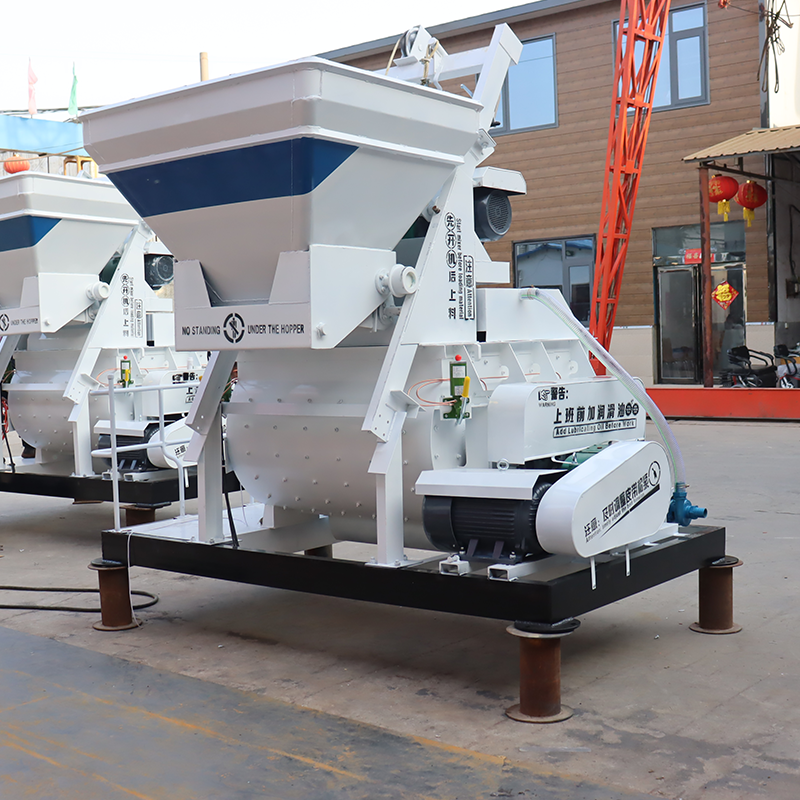

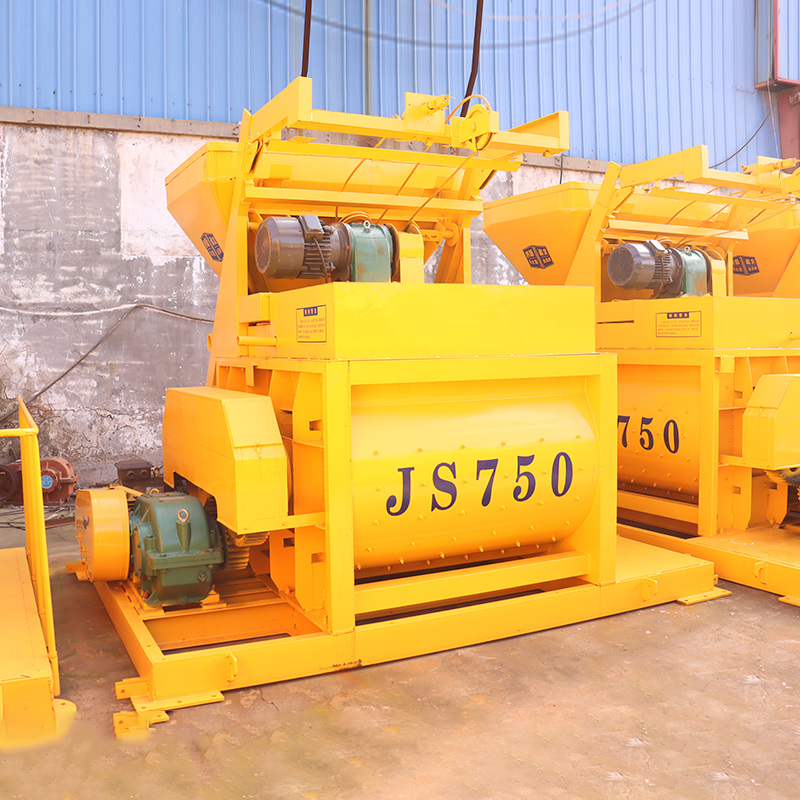

New CE Factory Manufactures JS Forced Stand Cement Mixer Concrete Batching Plants Mixing Host Twin Shaft Concrete Mixer

Product Description

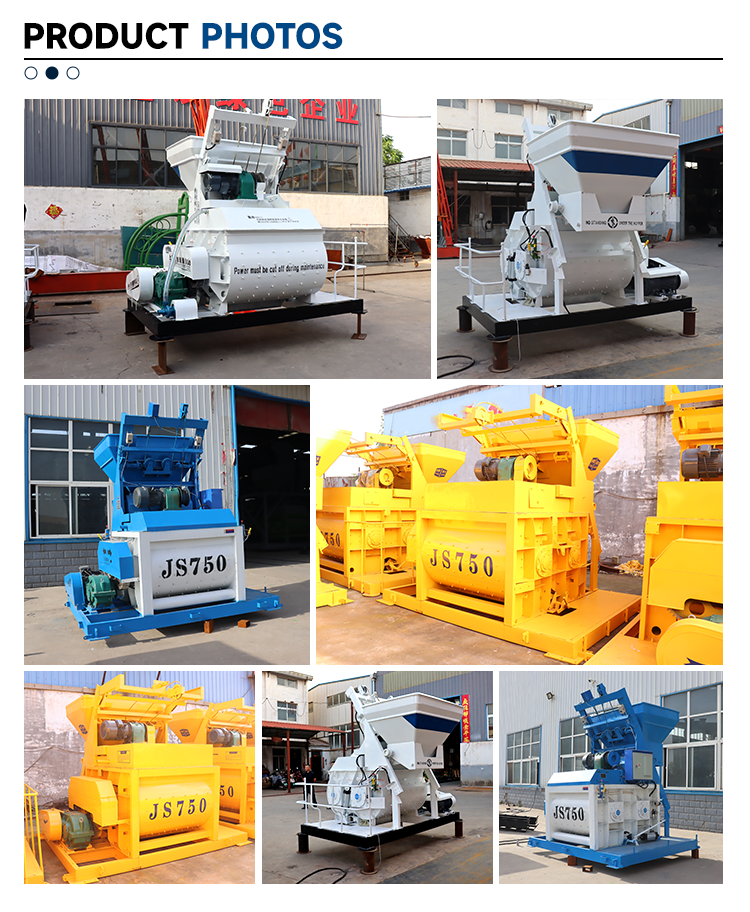

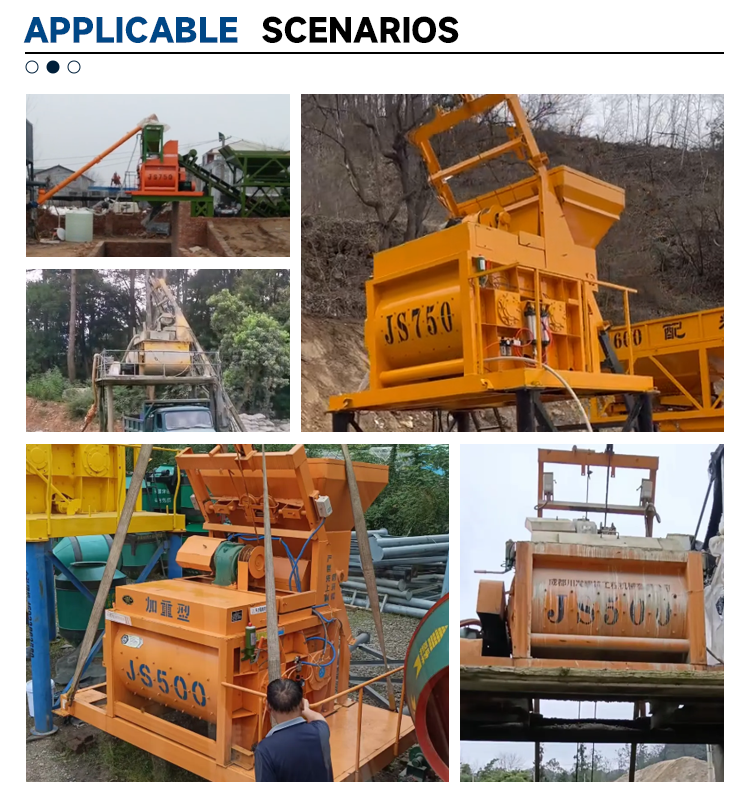

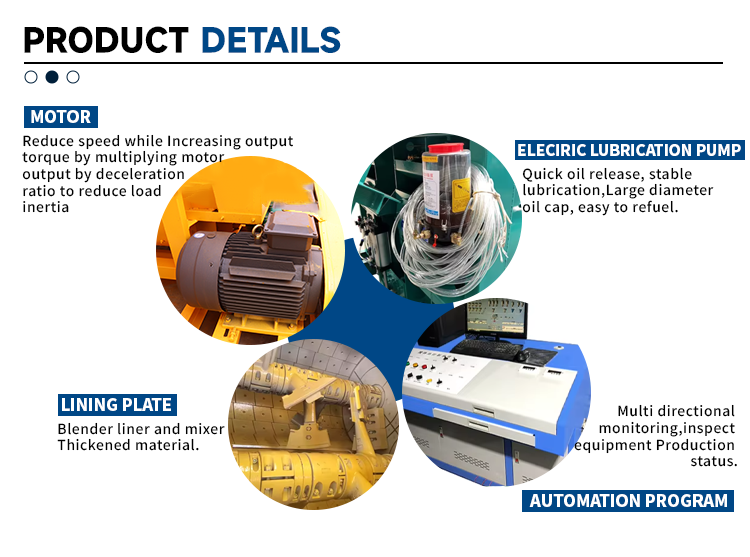

1.png4.png2.png画板 3(3f3be82676).png

Model JS-500 JS-750 JS-1000 JS-1500 JS-2000 JS-3000
Stirring motor power 18.5kw 30kw 37kw 44kw 60kw 110kw
Increase motor power 5.5kw 7.5kw 11kw 15kw 18.5kw 45kw
Water pumpmotorpower 1.1kw 1.1kw 3kw 3kw 4kw 5.5kw
Overall dimensions 4460*3050*5225mm 4950*3650*6225mm 8765*3436*9540mm 9645*3436*9700mm 10720*3870*10726mm 12580*4620*12890mm
Total Weight 3.1T 4.2T 5.8T 9.86T 13.5T 16.5T
Discharge capacity 500L 750L 1000L 1500L 2000L 3000L
Feeding capacity 800L 1200L 1600L 2400L 3200L 4800L
productivity ≥25M3/H ≥37.5M³/ H ≥50M3/H ≥75M³/H ≥100M³/H 150-180M³/ H
Rotating speed of mixingblade 35R/MIN 31R/MIN 25.5R/MIN 25.5R/MIN 23R/MIN 21R/MIN
Hopper lifting speed 18M/MIN 18M/MIN 21.9M/MIN 23M/MIN 26.8M/MIN 28.5M/MIN
Maximum paridesize fagegate 80MM/60MM 80MM/60MM 80MM/60MM 80MM/60MM 80MM/60MM 120MM/80MM
Unloading height 1.8-4.5M 1.8-4.5M 1.8-4.5M 1.8-4.5M 1.8-4.5M 1.8-4.5M


We only recommend high-quality construction machinery manufacturers.

Yuandong Machinery is a professional manufacturer of concrete mixing equipment, with significant industry advantages and other core competitive strengths.

Zhengzhou Yuandong Machinery Manufacturing Co., Ltd. is a member of the concrete mixing equipment manufacturing industry.
With more than 21 years of manufacturing experience, it has accumulated extensive technical expertise.
For more than 20 years, relying on its years of R&D experience and technological innovation, the company has been committed to providing customers with various high-quality concrete mixers and concrete batching plants.
Its modern 8,000-square-meter production facility efficiently meets large-scale manufacturing demands while ensuring reliable production quality.

Yuandong Machinery's greatest advantage over its competitors lies in its identity as a genuine source manufacturer and its commitment to a "factory-direct sales" business model. The complete machine price is lower than that offered by any intermediary in the market.
This core advantage enables customers to obtain the highest-quality products at the best possible prices while meeting their urgent equipment needs.
The company is dedicated to providing suitable equipment for small and medium-sized infrastructure projects, rural infrastructure construction, and precast component manufacturing.
Zhengzhou Yuandong Machinery's equipment is better suited to the needs of small and medium-sized projects. It features an attractive appearance, easy operation, high reliability, and excellent cost performance.
