JS-500 Mobile Forced Mixing Plant offers efficient forced concrete mixing for various civil engineering construction sites

JS-500 Mobile Forced Mixing Plant offers efficient forced concrete mixing for various civil engineering construction sites

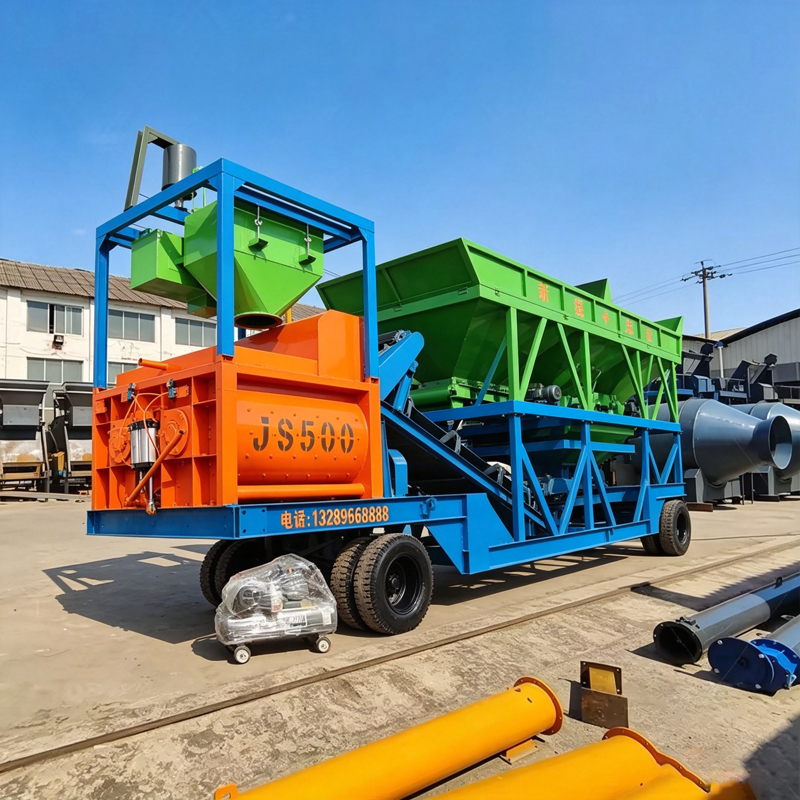

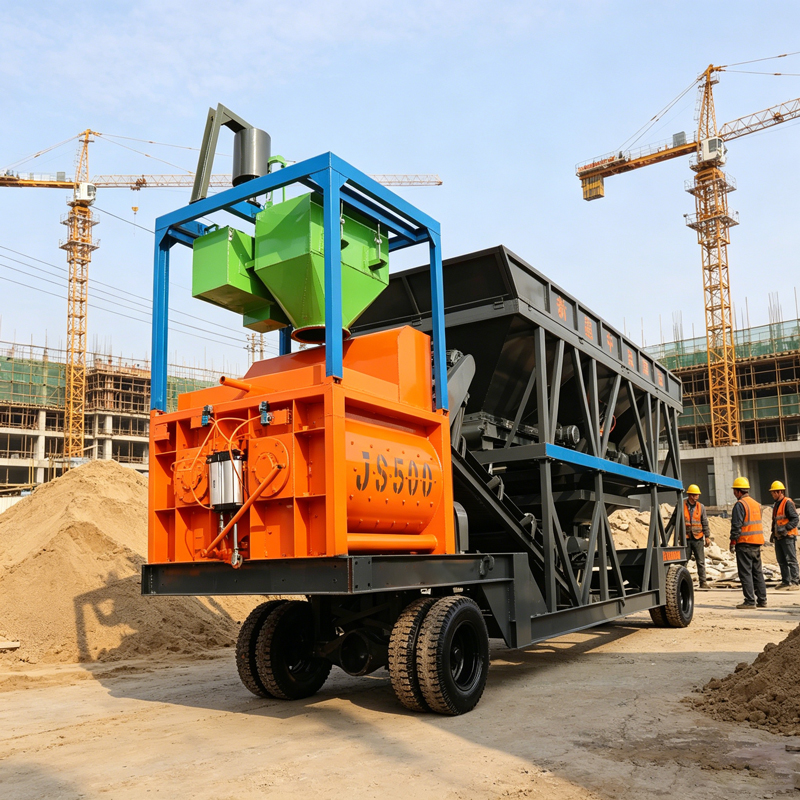

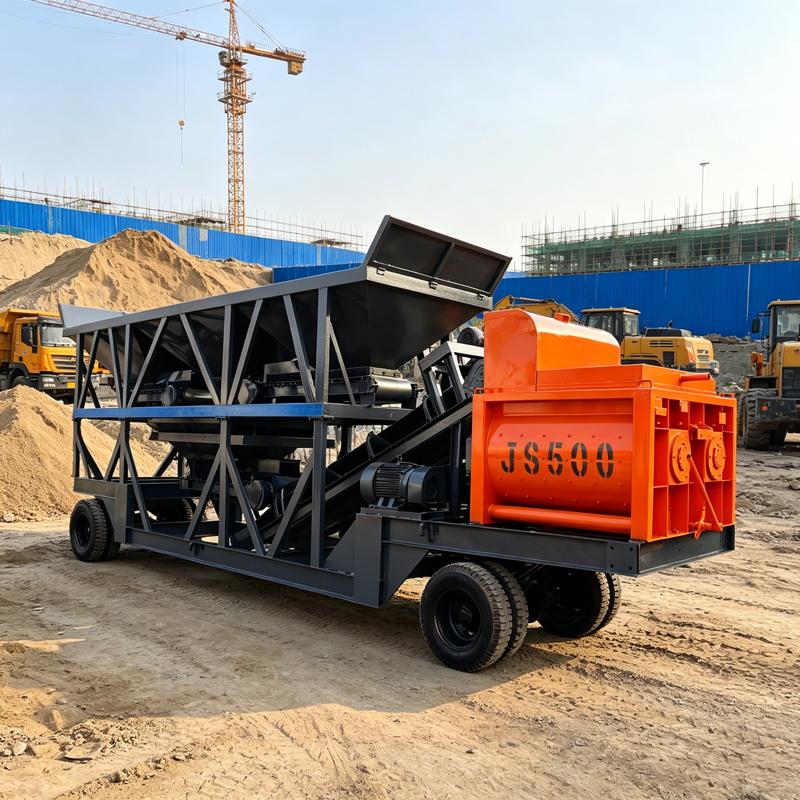

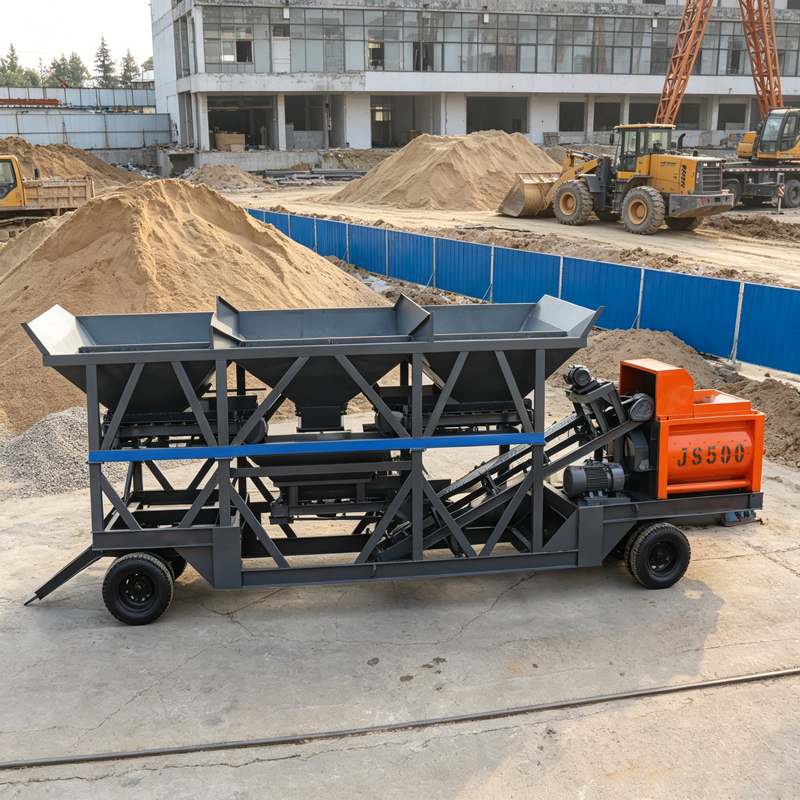

JS-500 mobile forced concrete mixing plant comes with 500L discharge capacity and 20~30m³ per hour productivity, designed with compact trailer structure for convenient relocation between construction sites, equipped with precise batching system and wear-resistant spare parts, extensively used for highway, bridge and all kinds of temporary infrastructure construction.

Product Description

Product Advantages

· Fast Transfer & Flexible Layout

Trailer-mounted integrated structure needs no fixed foundation, realizing quick disassembly and cross-site transportation to meet frequent moving construction demands.

· Accurate Batching & Stable Mixing Effect

Strict control on ingredient tolerance guarantees uniform concrete mixing, effectively stabilizing finished concrete quality for commercial engineering standards.

· Wear-resistant Accessories & Low Maintenance Cost

Liner plates and mixing blades adopt high wear-resistant alloy material, outstanding abrasion resistance reduces replacement frequency and later maintenance expenditure.

· Compact Body & Space-saving Installation

Optimized overall structural arrangement shrinks occupied area, suitable for narrow construction sites with limited placement space.

· High Production Efficiency & Wide Application Range

20-30m³ hourly output efficiently supplies large concrete consumption, applicable for highway, bridge, water conservancy and temporary infrastructure projects.

Product Parameters

Model	JS500	JS750	JS1000	JS1500	JS2000	JS3000
Discharge capacity	500L	750L	1000L	1500L	2000L	3000L
Feed capacity	800L	1200L	1600L	2400L	3200L	4800L
Maximum aggregate size	60mm/80mm	60mm/80mm	60mm/80mm	60mm/80mm	60mm/80mm	60mm/80mm
Productivity	20-30m³	30-35m³	50-60m³	80-90m³	100-120m³	150-180m³
Total power	50kw	60kw	70kw	90kw	140kw	210kw
Aggregate	±2%	±2%	±2%	±2%	±2%	±2%
Cement	±1%	±1%	±1%	±1%	±1%	±1%
Fly ash	±1%	±1%	±1%	±1%	±1%	±1%
Water	±1%	±1%	±1%	±1%	±1%	±1%
Additive	±1%	±1%	±1%	±1%	±1%	±1%

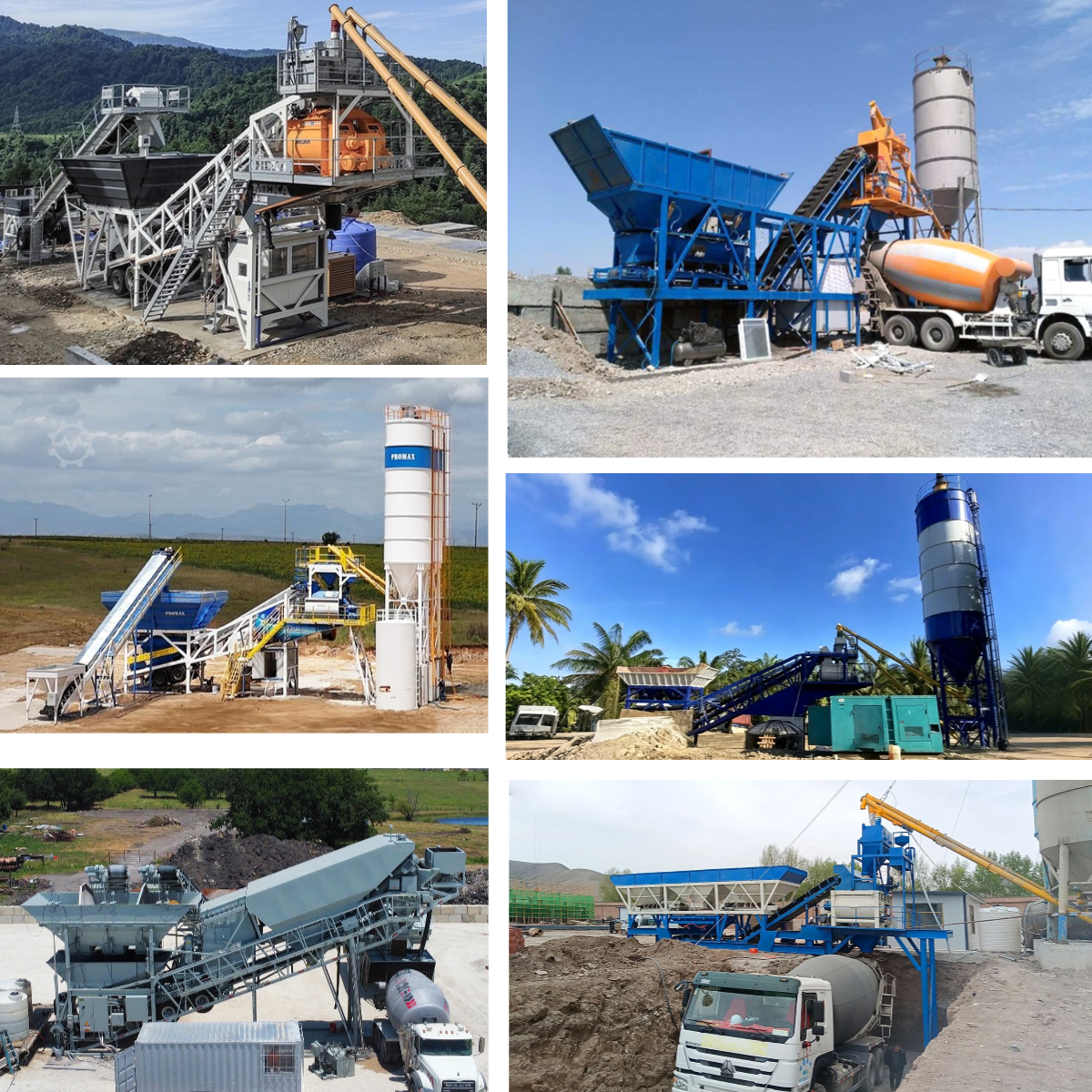

Application scenarios

Product Advantages

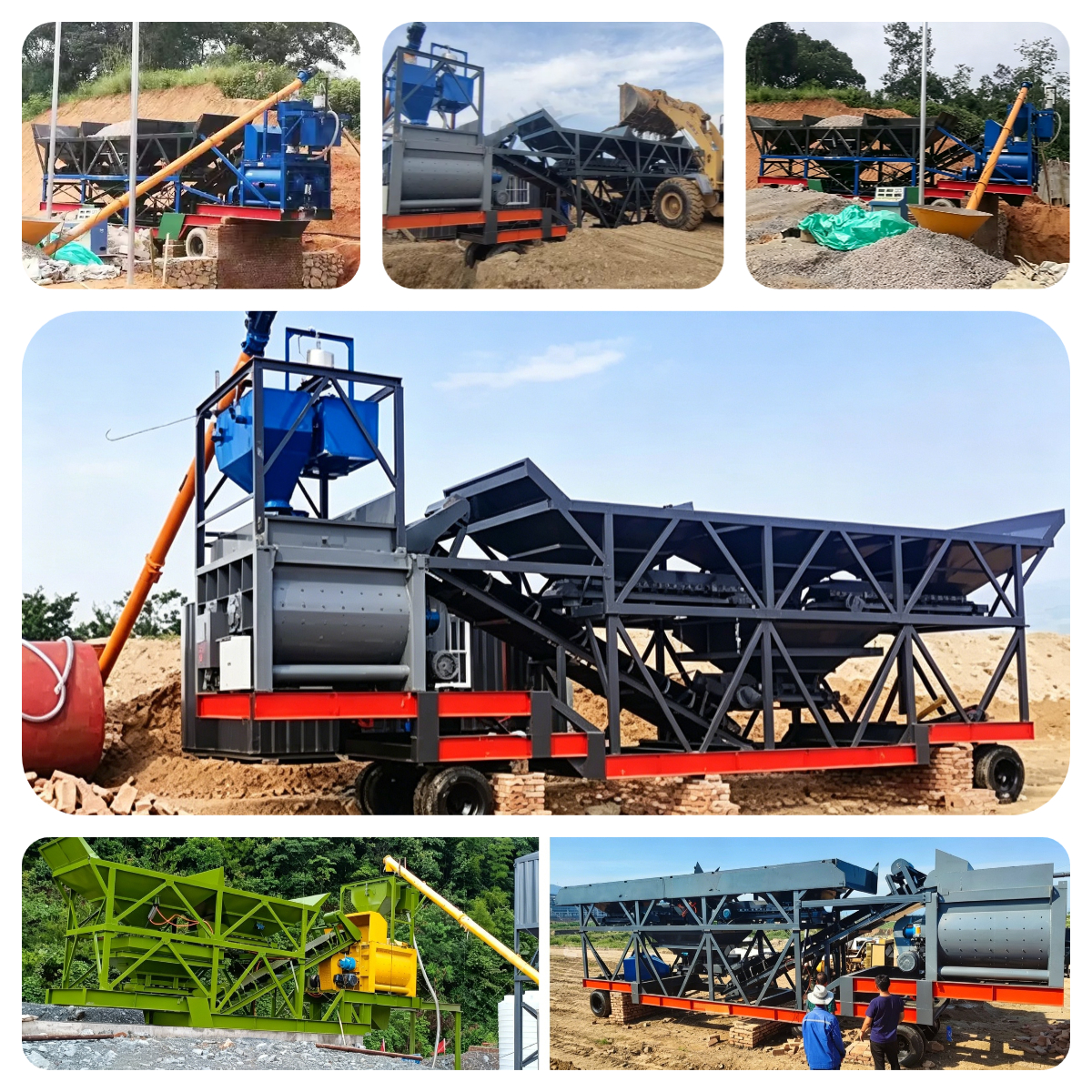

This JS500 mobile forced mixing plant can adapt to mountain, plain, tropical and rural various complex construction environments, no fixed foundation required, convenient transshipment among different projects, effectively solve the concrete supply problems of mountain highway, water conservancy, overseas engineering and temporary short-cycle construction.

Service Support

· Pre-sales Consulting Service

Our technical team provides customized project consulting. We analyze site space, foundation and construction surroundings to recommend ideal equipment configuration matching your production demands.

· Global Original Spare Parts Supply

Core wear parts are well stocked. Fast global shipment cuts equipment downtime and avoids project delays.

· Lifelong Remote Technical Support

Continuous online technical guidance is available anytime to troubleshoot operational faults throughout equipment service life.

We only recommend high-quality construction machinery manufacturers.
Yuandong Machinery is a professional manufacturer of concrete mixing equipment, with significant industry advantages and other core competitive strengths.

Zhengzhou Yuandong Machinery Manufacturing Co., Ltd. is a member of the concrete mixing equipment manufacturing industry.
With more than 21 years of manufacturing experience, it has accumulated extensive technical expertise.
For more than 20 years, relying on its years of R&D experience and technological innovation, the company has been committed to providing customers with various high-quality concrete mixers and concrete batching plants.
Its modern 8,000-square-meter production facility efficiently meets large-scale manufacturing demands while ensuring reliable production quality.
