Free Base Concrete Mixing Plant adopts integrated modular frame to skip complicated foundation pouring. All factory prefabricated modules can be laid on flat hard ground without civil works, supporting fast assembly and disassembly to cut pre-project cost and time. Fitted with twin-shaft compulsory mixer, it realizes even concrete mixing. Independent weighing devices for aggregate, cement, water and admixtures ensure precise measurement and steady finished concrete quality during long continuous running. Reinforced anti-corrosion steel structure delivers great wear resistance for outdoor construction sites.
It comes with full standard accessories: multi-bin batcher, closed belt conveyor, PLC intelligent control cabinet, water and admixture tanks. The one-touch control system stores multiple concrete formulas and displays real-time production data, easy for workers to operate. Split modular design enables convenient truck transport and cross-site transfer, ideal for temporary projects, road maintenance, rural and small infrastructure works. It has low site requirements and flexible mobility, bringing better economic benefits than fixed mixing stations.
This Free Base Concrete Mixing Plant abandons traditional foundation pouring work. It can be directly installed on flat and solid ground without additional civil engineering, which greatly cuts your early construction investment and shortens the whole project preparation cycle.
• Modular Split Structure, Fast Transfer & Installation
All machine parts are prefabricated modular units. Workers can finish assembly and disassembly within a short time. The split design supports truck transportation, making cross-site migration effortless for frequent relocation projects.
• Twin-shaft Forced Mixer, Stable Homogeneous Mixing
Equipped with standard twin-shaft compulsory mixing host, the equipment carries out full stirring of aggregate, cement and additives. It avoids concrete segregation and keeps uniform finished concrete quality during long-time continuous production.
• Independent Weighing System, High Batching Precision
Aggregate, cement, water and admixture are equipped with separate weighing modules respectively. Strict weighing tolerance ensures accurate material proportioning, fully meeting the concrete quality standards of different infrastructure projects.
• Intelligent PLC Control System, Easy Operation
The automatic PLC control cabinet supports one-click start-stop operation, can store dozens of concrete proportion formulas, and displays real-time production data visually. New operators can master the operation skill after simple training.
• Reinforced Anti-corrosion Steel Frame, Long Service Life
The whole machine adopts thickened reinforced steel frame with complete anti-rust and anti-corrosion treatment. It features strong wear resistance, adapting to long-term outdoor harsh construction environments and reducing later maintenance costs.
Model |
HZS25 |
HZS35 |
HZS60 |
HZS90 |
HZS120 |
Productivity |
25m³/h |
35m³/h |
60m³/h |
90m³/h |
120m³/h |
Blender model |
JS750 |
JS2000 |
|||
Number of aggregate types |
3 |
4 |
4 |
4 |
4 |
Maximum aggregate size |
80/60mm |
80/60mm |
80/60mm |
80/60mm |
80/60mm |
Discharge height |
3800mm |
3800mm |
3800mm |
3800mm |
3800mm |
Aggregate tolerance |
±2% |
±2% |
±2% |
±2% |
±2% |
Cement tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
Water tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
Additive tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |

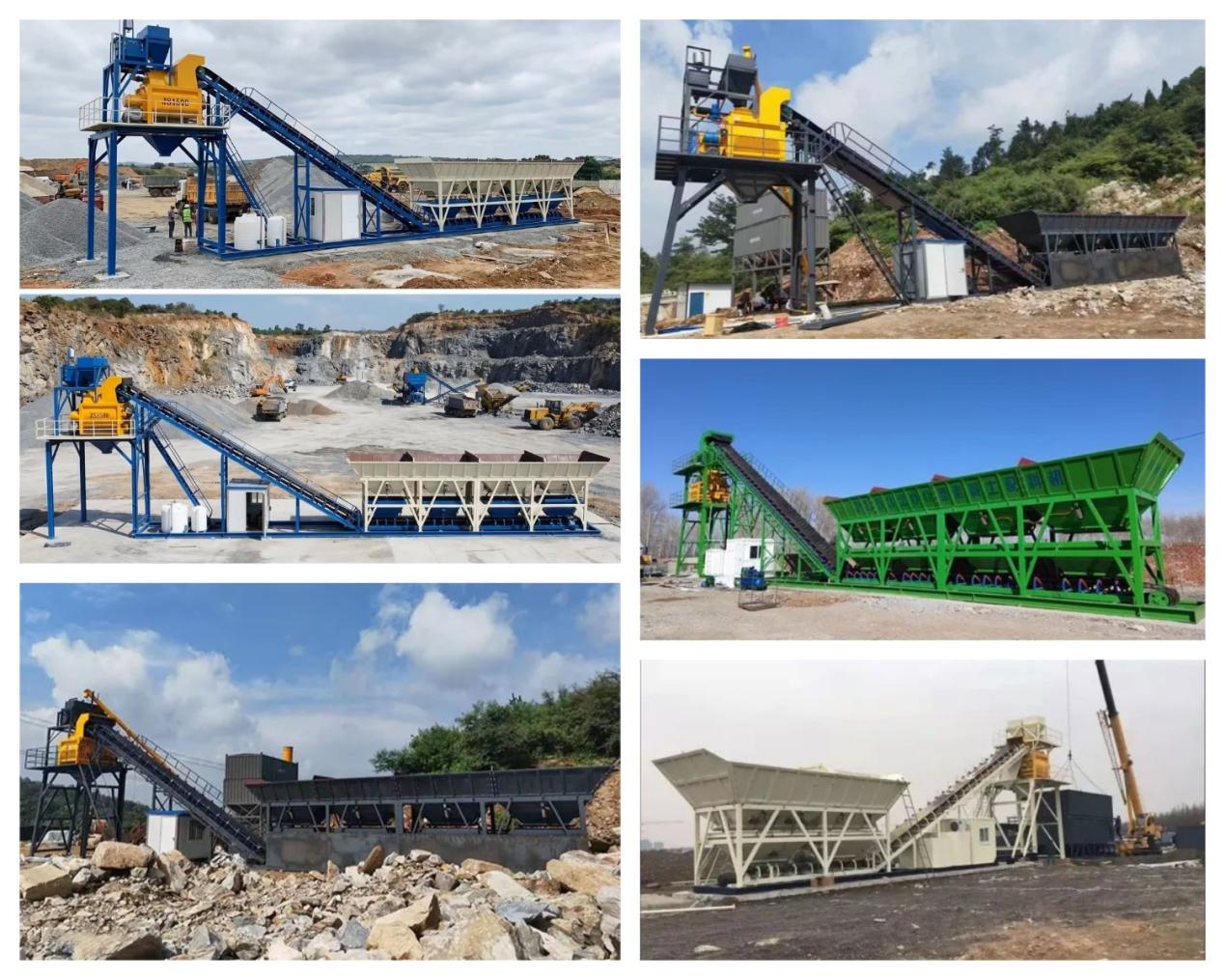

The construction environments where this Free Base Concrete Mixing Plant operates feature scattered rock piles, undulating ground and heavy dust, conditions that traditional fixed mixing equipment struggles to adapt to. The equipment can be deployed directly on unfinished rocky ground without pre-laid concrete foundations, which greatly shortens the preliminary preparation work of the whole project. Multiple appearance styles are available to coordinate with different construction team’s unified equipment standards, and the overall frame structure can withstand frequent transfer and bumpy transportation between different work zones without structural deformation.
It can coordinate with stone mining production lines, mountain road expansion works and scattered rural construction sites, meeting the concrete supply demands of decentralized short-term projects. The matching layout of feeding, conveying and mixing units is flexible and adjustable according to the actual space of each construction zone. The whole set of equipment can be quickly disassembled and relocated once a single construction phase is completed, effectively solving the frequent equipment transfer pain points of mobile engineering projects.
• Customized Scheme Support
Our team will design exclusive overall layout solutions according to your project output, site terrain and construction requirements, and offer flexible customization on silo quantity, equipment color and control functions to fit your actual construction demands.
• Global Spare Parts Supply
Complete original wear-resistant spare parts are stored in our warehouse. We support fast cross-border logistics delivery to all countries, effectively shortening equipment downtime caused by damaged accessories.
• Full-time Remote Technical Guidance
Professional technical staff provide round-the-clock online remote support via video calls, covering machine installation, parameter debugging, formula editing and daily common fault elimination for your operators.
• Detailed Operation & Installation Document Package
We deliver complete handbooks, installation drawings and operation video tutorials together with equipment, which help your local workers finish assembly and commissioning independently without on-site engineers.
• Long-term After-sales Follow-up
We maintain continuous tracking of equipment operating conditions after delivery, regularly remind users of routine maintenance, and give quick replies to all after-sales questions and failure feedback.
