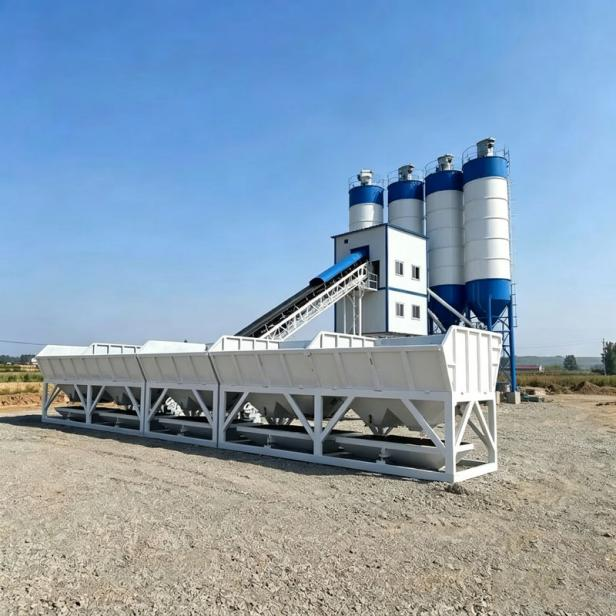

The HZS-75 concrete batching plant is a high-performance modular system optimized for medium-scale ready-mix production. This integrated design combines a multi-compartment aggregate feeder, an inclined belt conveyor, and a powerful twin-shaft forced mixer into a space-saving layout. The mixer utilizes durable chromium-alloy liners and advanced sealing technology to resist abrasion, significantly extending maintenance intervals. Precise material dosing is ensured by independent weighing sensors and controlled delivery rates.

Pre-assembled modules, including electrical and pneumatic connections, allow for rapid on-site erection via simple bolt-together operations. This modularity facilitates both fast deployment and easy future relocation. The entire production sequence is automated by a PLC-based control system with an intuitive touchscreen, capable of storing numerous mix designs and batch records for quality assurance. HZS-75 delivers reliable performance with low noise and simplified daily maintenance.

Product Description

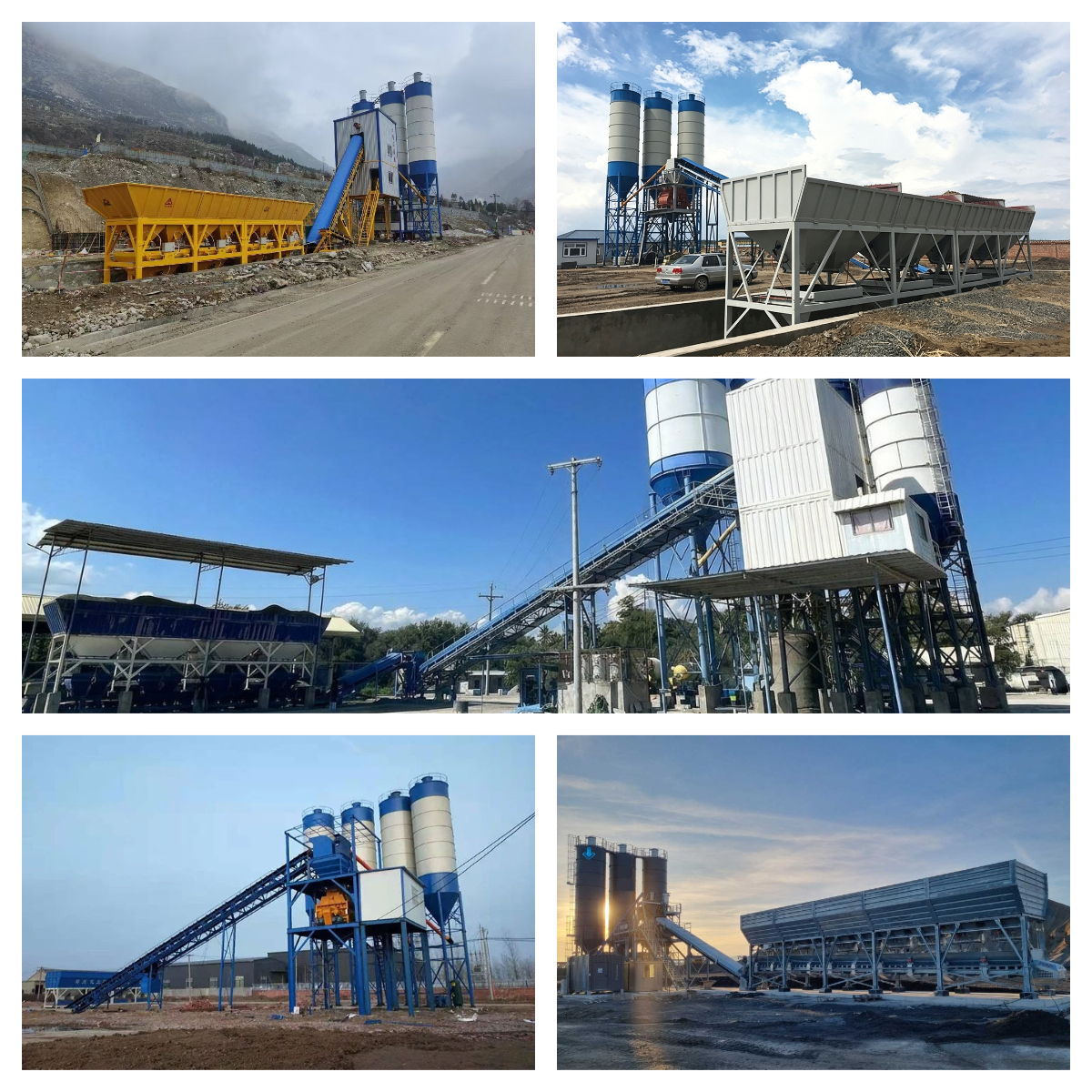

Product Advantages

Strong Adaptability to Diverse Working Environments

The split modular frame suits mountain construction zones, urban commercial mixing yards, industrial parks and township projects without complicated foundation work. Thickened anti-corrosion steel structure ensures stable operation outdoors under windy, dusty and variable-temperature conditions.

Integrated Eco-Friendly Dust and Noise Reduction

Fully enclosed feeding and conveying passages effectively prevent dust overflow, while built-in shock absorption structures lower operating noise. The whole equipment meets strict environmental protection standards for urban construction areas.

High-Efficiency Uninterrupted Production

Large-volume aggregate bins and supporting multi-group cement silos enable stable mass concrete output around the clock. The integrated automatic control system realizes one-click feeding, batching and mixing to greatly save labor costs.

Flexible Modular Combination Design

All functional units are connected by bolts for fast assembly, disassembly and cross-site transfer. Modules can be freely combined based on project scale to satisfy different production capacity requirements.

Extended Service Life with Low Maintenance Cost

Core mixing and conveying parts are made of thickened wear-resistant alloy materials to reduce frequent replacement of spare parts. Universal standardized accessories simplify daily maintenance and cut long-term operating expenses.

Product Parameters

Model	HZS-25	HZS-35	HZS-50	HZS-60	HZS-75	HZS-90	HZS-120	HZS-180
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h
Mixing host model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000
Mixing host power	18.5kw	30kw	37kw	2×18.5kw	44kw	60kw	37kw×2	55kw×2
Cycle period	72s	72s	60s	60s	60s	60s	60s	60s
Blender nominal capacity	500L	750L	1000L	1000L	1500L	1500L	2000L	3000L
Maximum aggregate size	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm
Ingredient capacity	800L	1600L	100m³/h	100m³/h	150m³/h	150m³/h	3200L	300m³/h
Aggregate bin capacity	6m³×3	6m³×3	6m³×3	6m³×4	12m³×3	12m³×4	18m³×4	25m³×4
Types of aggregates	3	3	3	4	3	4	4	4
Aggregate productivity	100m/h	100m/h	100m/h	100m/h	150m/h	150m/h	200m/h	300m/h
Spiral productivity	40t/h	40t/h	40t/h	40t/h	40t/h	65t/h	65t/h	120t/h
Discharge height	3.8m	3.8m	3.8m	4m	4m	4m	4m	4m
installed capacity	65kw	65kw	120kw	120kw	150kw	165kw	210kw	295kw

Application scenarios

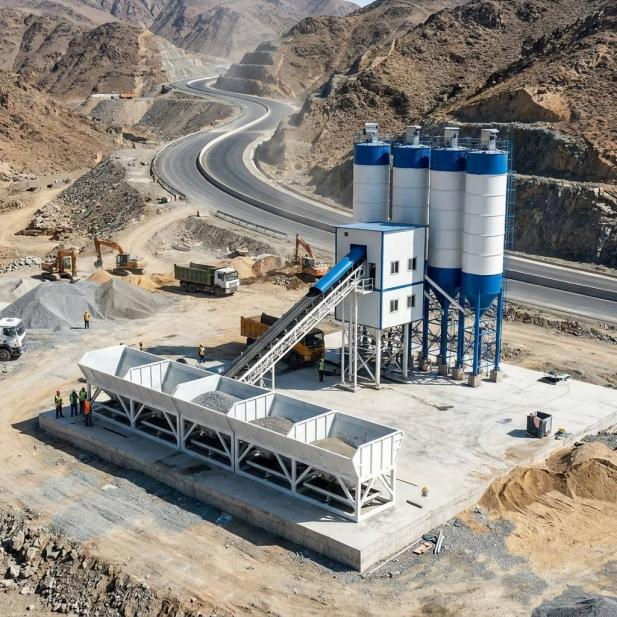

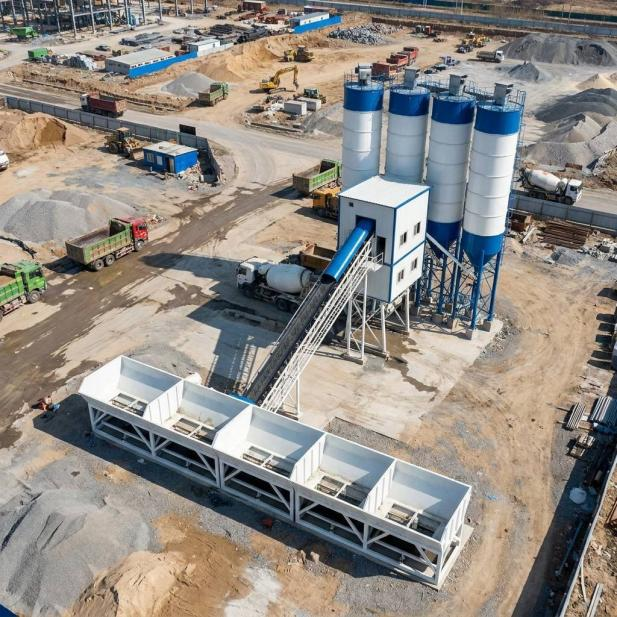

Concrete mixing stations boasts outstanding adaptability to diversified construction environments. The detachable modular frame can be deployed on rugged mountain road sites, suburban commercial concrete yards, large industrial parks and small township engineering zones without complicated ground foundation works. Constructed with thickened anti-corrosion steel components, fully sealed dust-proof conveying passages and vibration-damping noise reduction structures, the complete unit maintains steady performance during long-duration open-air operation amid windy, dusty and temperature-fluctuating surroundings, and fully meets strict urban environmental emission regulations.

Flexible collocation of functional modules delivers reliable high-efficiency production capacity to match varying project demands. Large-volume aggregate storage bins, multi-group powder silos and lengthened sealed conveyor systems support uninterrupted mass concrete output for large-scale infrastructure construction. An integrated intelligent control room automates the whole flow of feeding, proportioning and mixing to slash labor expenses. Besides, bolt-connected assembly allows fast disassembly, transit and reinstallation, helping construction enterprises reduce overall equipment and construction investment costs.

Service Support

·Professional On-Site Installation & Training

We provide comprehensive Professional On-Site Installation & Training We provide comprehensive on-site installation guidance and professional operation training for your local team. Our experts ensure the equipment is correctly commissioned and your operators are fully proficient in daily maintenance.

·24/7 Intelligent Remote Technical Support

Our dedicated technical team is available around the clock via video calls or remote diagnostic systems. We respond to all technical inquiries within 1 hour to minimize downtime and keep your project running smoothly.

·Guaranteed Lifetime Spare Parts Supply

We maintain a robust inventory of original high-wear components and critical spare parts. We guarantee long-term availability and express delivery services to ensure your equipment remains in peak condition throughout its lifecycle.

·Customized Project Engineering Solutions

Beyond standard products, our engineering team offers tailored layout designs and equipment configurations based on your specific site conditions, climate challenges, and production requirements.

·1-Year Comprehensive Global Warranty

We provide a 1-year comprehensive warranty covering all major structural and functional components. In case of manufacturing defects, we offer free replacement parts and expert guidance to ensure your complete peace of mind.
