Stationary Fully Automatic Ready Mix Concrete Batching Plant Equipped with PLC Control System TwinShaft Mixer and Multi-Silo Design, Suitable for LargeScale Infrastructure, Bridge, Dam and Commercial Construction Projects

Stationary Fully Automatic Ready Mix Concrete Batching Plant Equipped with PLC Control System TwinShaft Mixer and Multi-Silo Design, Suitable for LargeScale Infrastructure, Bridge, Dam and Commercial Construction Projects

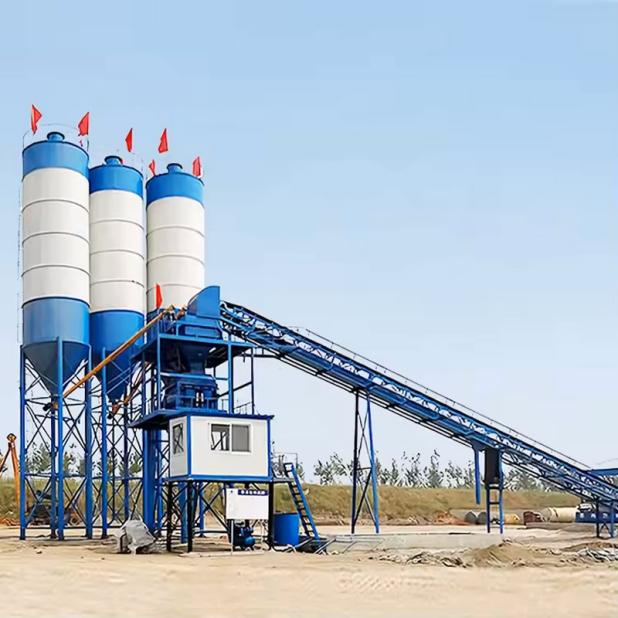

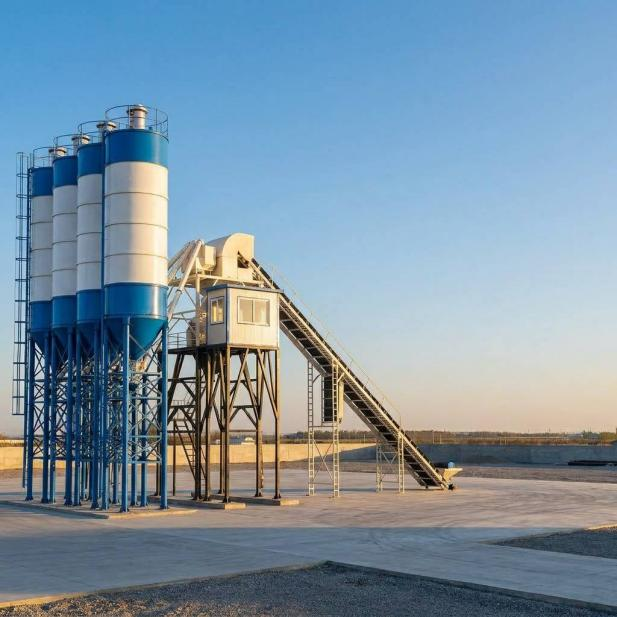

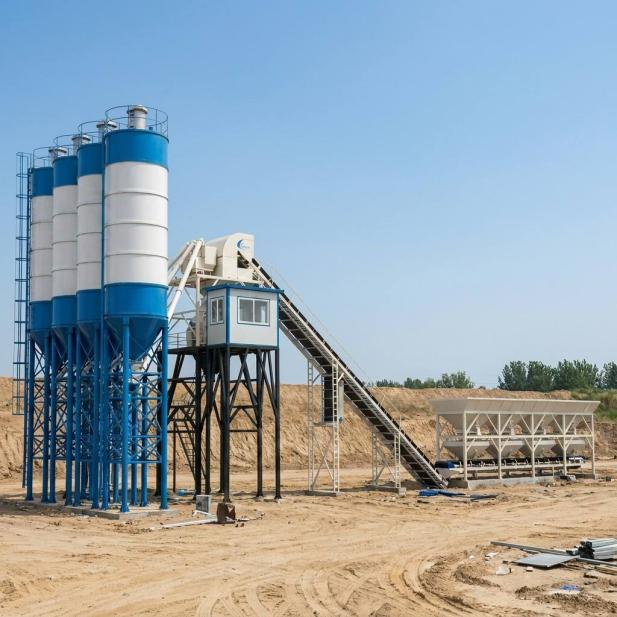

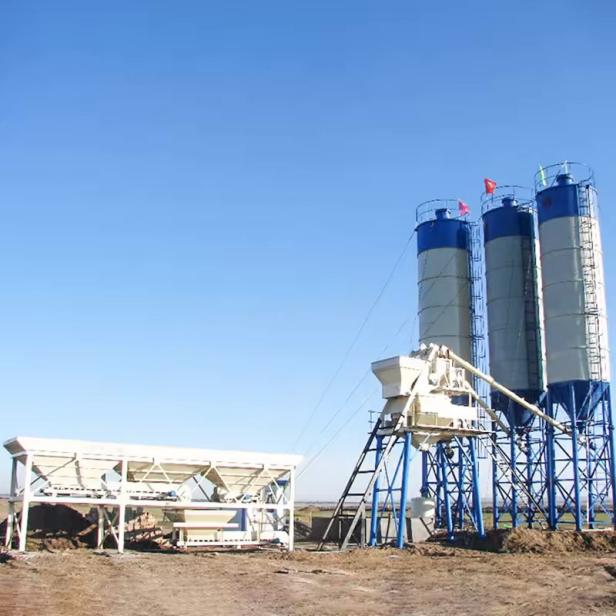

Model HZS 35 stationary concrete batching plant is a medium sized fixed concrete production equipment independently developed for small to medium scale construction projects and commercial concrete supply scenarios.
Designed with mature industrial grade configurations, this batching plant realizes automatic batching, metering, mixing and discharging with stable running performance. Its compact yet sturdy layout saves site space while ensuring overall structural safety under long term continuous operation.
Precise weighing sensors and matched control units guarantee accurate ratio of aggregates, cement, water and additives, effectively securing the stability of finished concrete quality. Supporting flexible formula adjustment, it can produce ordinary commercial concrete for roads, municipal works, small scale bridges, residential buildings and supporting facilities.
With easy access maintenance points and user friendly operation logic, HZS 35 features low failure rate and convenient daily upkeep. It is an economical and practical concrete mixing solution for municipal engineering, rural infrastructure and small scale real estate construction projects.

Product Description

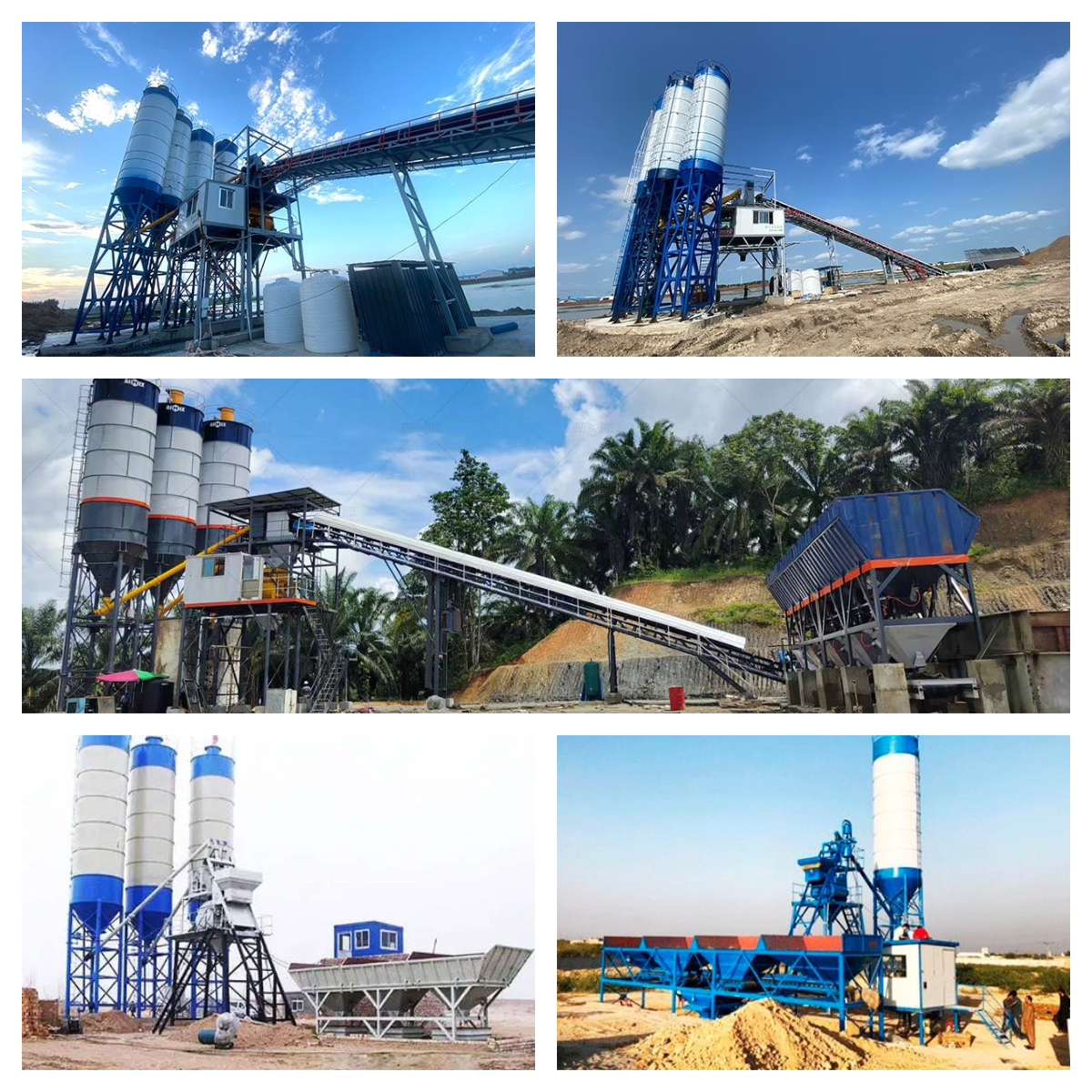

Product Advantages

·Compact Modular Design & Fast On Site Setup

The HZS 35 features a modular, space optimized design that minimizes site footprint while enabling quick assembly and commissioning. Its compact structure is perfectly suited for small to medium construction sites with limited space, without sacrificing operational stability.

·High Precision Batching & Consistent Concrete Quality

Equipped with high accuracy weighing sensors and a PLC control system, it ensures precise metering of aggregates, cement, water and admixtures, eliminating human error and guaranteeing consistent concrete quality batch after batch.

·Full Automatic PLC Control for Easy Operation

With a fully automatic PLC control system, the plant realizes one click operation of batching, mixing and discharging. The intuitive HMI interface reduces operator training time and labor costs, supporting both automatic and manual modes for flexible use.

·Robust Construction & Long Term Durability

Key components, including the twin shaft mixer and structural frame, are made of wear resistant high strength steel. It is engineered for continuous medium load operation, with strong anti fatigue performance and a long service life.

·Low Maintenance & High Reliability

Designed with accessible maintenance points and standardized spare parts, the HZS 35 simplifies daily inspection and repairs. Its low failure rate design minimizes downtime, ensuring stable production for your projects.

·Wide Application & Flexible Formula Support

Capable of producing various grades of ordinary commercial concrete, it adapts to diverse project needs, including municipal works, residential construction, small scale infrastructure and rural engineering projects.

·Eco Friendly Configuration & Compliance

With sealed material conveying and optional dust collection systems, the plant effectively reduces dust and noise pollution, meeting most construction site environmental protection requirements.

Product Parameters

Model	HZS-25	HZS-35	HZS-50	HZS-60	HZS-75	HZS-90	HZS-120	HZS-180
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h
Mixing host model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000
Mixing host power	18.5kw	30kw	37kw	2×18.5kw	44kw	60kw	37kw×2	55kw×2
Cycle period	72s	72s	60s	60s	60s	60s	60s	60s
Blender nominal capacity	500L	750L	1000L	1000L	1500L	1500L	2000L	3000L
Maximum aggregate size	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm
Ingredient capacity	800L	1600L	100m³/h	100m³/h	150m³/h	150m³/h	3200L	300m³/h
Aggregate bin capacity	6m³×3	6m³×3	6m³×3	6m³×4	12m³×3	12m³×4	18m³×4	25m³×4
Types of aggregates	3	3	3	4	3	4	4	4
Aggregate productivity	100m/h	100m/h	100m/h	100m/h	150m/h	150m/h	200m/h	300m/h
Spiral productivity	40t/h	40t/h	40t/h	40t/h	40t/h	65t/h	65t/h	120t/h
Discharge height	3.8m	3.8m	3.8m	4m	4m	4m	4m	4m
installed capacity	65kw	65kw	120kw	120kw	150kw	165kw	210kw	295kw

Application scenarios

The HZS series stationary concrete batching plants demonstrate exceptional adaptability to diverse construction environments. In coastal projects, their anti-corrosion structural design effectively resists salt spray and high humidity, extending service life while preventing raw material contamination. For tropical regions, sealed cement silos and moisture-proof configurations avoid cement caking, and high-temperature-resistant components ensure stable operation under harsh climates. The compact, modular layout also fits limited-space urban/suburban sites, enabling quick on-site assembly without large-scale land preparation.

These plants deliver consistent, high-quality concrete production across different project scales. Their flexible formula adjustment capability meets the varied requirements of municipal works, residential construction, and infrastructure projects. With low maintenance needs, reliable performance, and eco-friendly configurations like dust control systems, they reduce operational costs and comply with environmental regulations, providing a durable and efficient concrete supply solution for construction teams worldwide.

Service Support

·Pre-Sales Technical Consulting & Customized Solution Design

We provide one-on-one technical consultation to analyze your project scale, site layout, and concrete requirements, then offer tailored plant configuration and layout plans to match your exact needs.

·End-to-End Installation & Commissioning Support

Our team provides detailed installation manuals, video guidance, and optional on-site or remote commissioning services to ensure smooth start-up and stable operation from day one.

·Global Spare Parts Supply & Fast Delivery

We maintain a full inventory of standard wear parts and critical components, enabling quick delivery worldwide to minimize equipment downtime.

·Rapid After-Sales Response & Troubleshooting

Our dedicated after-sales support team is available to address operational issues, diagnose faults, and provide solutions promptly, helping you keep production on track.

·Standard Warranty & Lifetime Remote Technical Support

The plant is covered by a standard warranty against manufacturing defects. We also offer lifetime remote technical support to help optimize production and resolve technical problems at any time.
