The High - performance Concrete Mixing Station HZS-50: Propelling the Future of Construction with Automated Assembly, Ensuring Top - notch Quality and Productivity in Building Infrastructure

The High - performance Concrete Mixing Station HZS-50: Propelling the Future of Construction with Automated Assembly, Ensuring Top - notch Quality and Productivity in Building Infrastructure

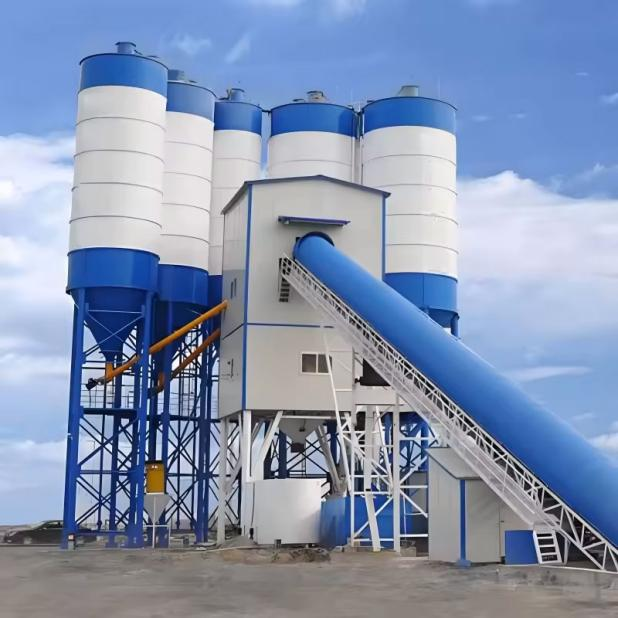

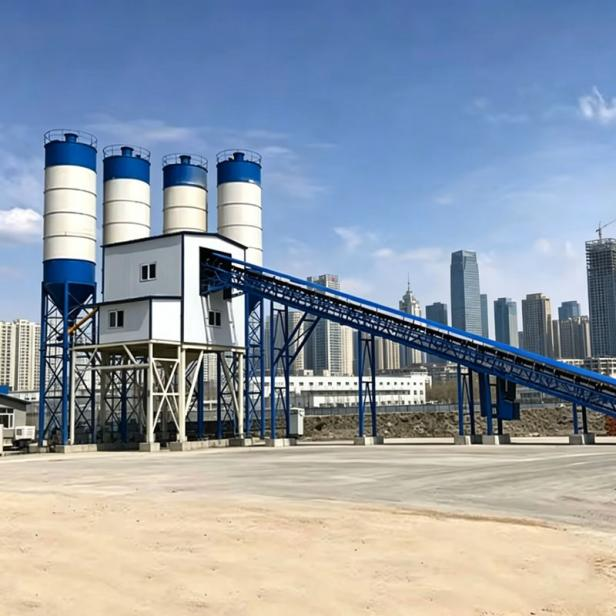

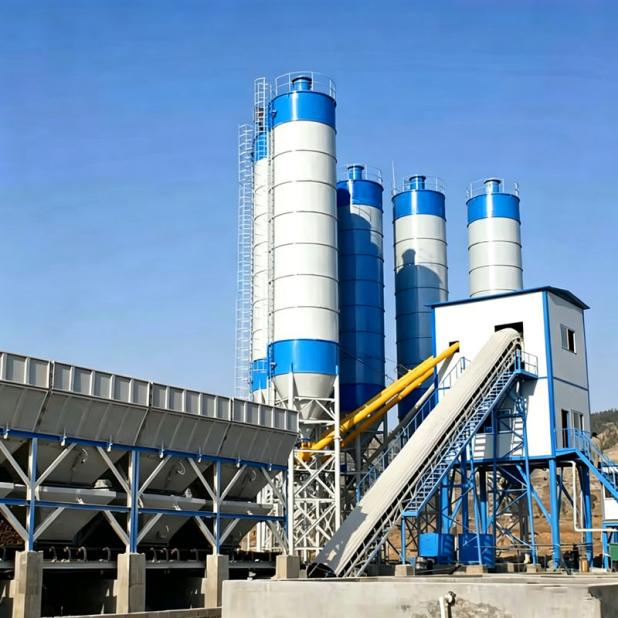

The HZS-50 stationary concrete batching plant is a medium-capacity fixed mixing device specially developed for municipal road construction, highway projects and small water conservancy works. It adopts a standard twin-shaft mixing host with efficient mixing efficiency, and comes with matched aggregate storage bins to realize continuous feeding without frequent material supplement, perfectly matching the concrete consumption demand of medium-sized construction sites.

Fitted with full-automatic PLC intelligent control system, the plant completes batching, weighing, mixing and discharging automatically with precise proportion control for stable concrete quality. Its modular integrated structure allows fast on-site installation and disassembly, and the whole machine adopts sealed conveying design to lower dust emission. Featuring low overall power consumption and convenient routine maintenance, this cost-effective mixing station serves as a steady long-term production solution for medium-scale engineering projects worldwide.

Product Description

Product Advantages

·Balanced 50m³/h Stable Output for Medium Projects

With steady hourly output of 50 cubic meters, it avoids the energy waste of large-scale plants while fully meeting continuous concrete supply of municipal, highway and water conservancy projects, presenting remarkable cost performance.

·60s Fast Circulation & Uniform Mixing Quality

Supporting one complete mixing cycle within only 60 seconds, the twin-shaft mixer delivers thorough stirring for all common concrete formulas. High-precision weighing units prevent proportion deviation to guarantee consistent finished concrete quality.

·Humanized PLC Automatic Control System

The intelligent control cabinet supports one-touch automatic operation and manual emergency switchover. All production data can be stored and exported, simplifying daily construction site management greatly.

·Compact Modular Layout with 3 Aggregate Storage Hoppers

Equipped with three independent aggregate bins for classified storage of raw materials, each functional module is prefabricated for quick on-site assembly. Its small footprint fits construction sites with limited flat space perfectly.

·Low Power Loss & Standard Eco Design

Fully sealed feeding and conveyor channels effectively control dust overflow. Optimized power distribution reduces idle energy consumption, and standardized wear parts cut long-term maintenance expenses.

·Long Service Life of Key Wear Components

Core mixing and conveying parts are made of thickened wear-resistant alloy steel, resisting abrasion under long-time continuous operation. The robust frame structure effectively avoids deformation and extends the whole plant’s service cycle.

Product Parameters

Model	HZS-25	HZS-35	HZS-50	HZS-60	HZS-75	HZS-90	HZS-120	HZS-180
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h
Mixing host model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000
Mixing host power	18.5kw	30kw	37kw	2×18.5kw	44kw	60kw	37kw×2	55kw×2
Cycle period	72s	72s	60s	60s	60s	60s	60s	60s
Blender nominal capacity	500L	750L	1000L	1000L	1500L	1500L	2000L	3000L
Maximum aggregate size	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm
Ingredient capacity	800L	1600L	100m³/h	100m³/h	150m³/h	150m³/h	3200L	300m³/h
Aggregate bin capacity	6m³×3	6m³×3	6m³×3	6m³×4	12m³×3	12m³×4	18m³×4	25m³×4
Types of aggregates	3	3	3	4	3	4	4	4
Aggregate productivity	100m/h	100m/h	100m/h	100m/h	150m/h	150m/h	200m/h	300m/h
Spiral productivity	40t/h	40t/h	40t/h	40t/h	40t/h	65t/h	65t/h	120t/h
Discharge height	3.8m	3.8m	3.8m	4m	4m	4m	4m	4m
installed capacity	65kw	65kw	120kw	120kw	150kw	165kw	210kw	295kw

Application scenarios

Product Advantages

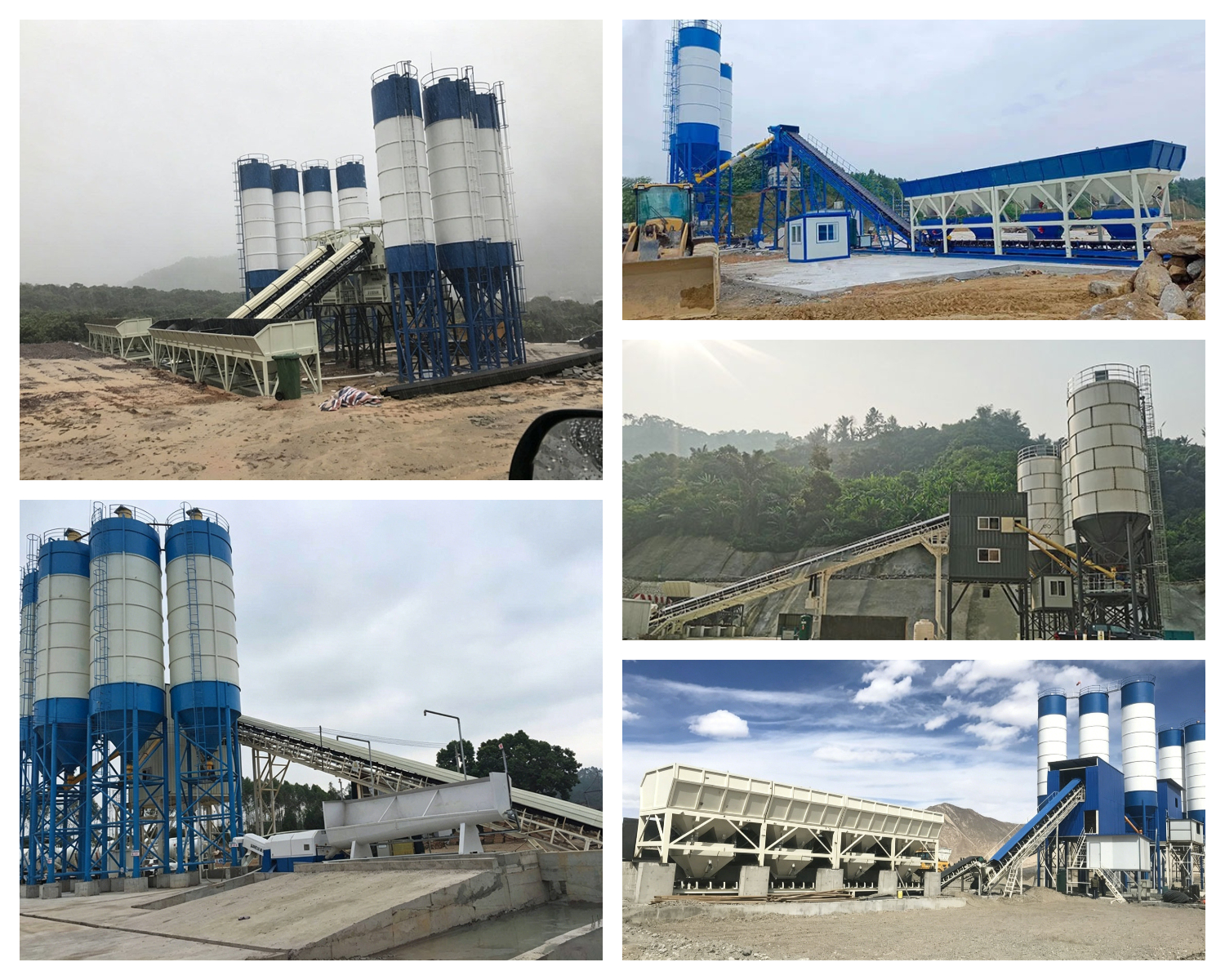

The stationary concrete batching plant features outstanding terrain adaptability, perfectly matching hilly, mountainous and suburban construction sites shown in the pictures. Equipped with inclined long belt conveyors, it smoothly adapts to sloped ground conditions and cuts extra costs for large-area site leveling. Separated aggregate storage bins and multi-group cement silos support bulk raw material stockpiling, maintaining non-stop production even in remote zones with infrequent material delivery. Its split compact layout takes up limited flat ground, making it ideal for narrow work areas surrounded by woods and hills.

The fully sealed feeding and conveying structure delivers unique eco-friendly value for construction sites near natural vegetation. It restricts dust spreading effectively to protect surrounding forest and plants, meeting local environmental control standards for engineering projects. All functional units adopt modular split design, which simplifies transportation along narrow mountain roads. With stable continuous mixing capacity, the equipment offers reliable consistent concrete supply for mountain highways, water conservancy facilities and municipal infrastructure construction.

Service Support

·Multi-dimensional Parameter Matching Consultation

Our technical team communicates fully about your construction output, raw material types and site limits, and recommends the most suitable model and supporting configurations to cut unnecessary investment costs.

·Global Fast Supply of Standard Spare & Wear Parts

A full range of universal spare parts and core wear-resistant accessories are in stock, supporting worldwide fast delivery, which greatly shortens equipment downtime caused by part replacement.

·24-hour Online After-sales Trouble Shooting Response

Dedicated after-sales service team keeps online all day long. We quickly diagnose operational faults through video and pictures, and provide targeted solutions to eliminate hidden dangers in time.

·Lifelong Remote Operation & Maintenance Guidance

We provide permanent remote technical consulting service. Our specialists share routine maintenance tips and efficient operation methods to help you keep stable long-term production.
