Exw Price Highly Flexible Mobile Concrete Plants Concrete Batching Plant Suppliers, Concrete Mixer Stations Manufacturer

Exw Price Highly Flexible Mobile Concrete Plants Concrete Batching Plant Suppliers, Concrete Mixer Stations Manufacturer

From Factory Exw Price Concrete Batching Plant Suppliers.
Model: Mobile Batching Mixing Plant
Production capacity:
50-60m³/hour
80-90m³/hour
100-120m³/hour

Product Description

Mobile Portable Concrete Batching Mixing Plant

1.Mobile concrete batching plants are concrete production equipment developed from stationary concrete batching plants.
2.They integrate material storage, weighing, conveying, mixing, unloading, and a fully automated control system into a single trailer unit.
3.Their operating process, operation methods, and maintenance are consistent with stationary concrete batching plants.
4.Mobile batching plants are characterized by their flexibility in movement, quick and easy assembly and disassembly, and simple storage and management.
5.They are suitable for construction sites with small concrete volumes and short construction periods, as well as for mobile construction projects such as highways, railways, bridges, ports, hydropower, and airports.

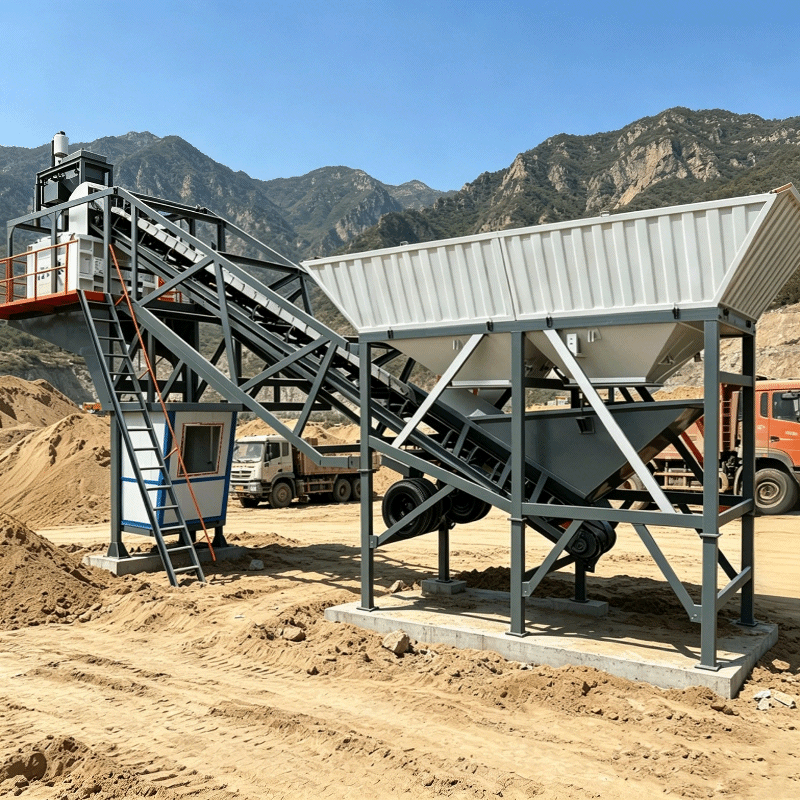

Concrete batching and mixing plant (14).png

Product Introduction

Model: Mobile Mixing Station
Production capacity: 90m³/hour
Purpose: Mix and stir cement and sand together
Material: Carbon steel (customization of stainless steel is also available)

Details of the parameters of the concrete mixing station

Model	JS500	JS750	JS1000	JS1500
Discharge capacity	500L	750L	1000L	1500L
Feed capacity	800L	1200L	1600L	2400L
Maximum aggregate size	60mm/80mm	60mm/80mm	60mm/80mm	60mm/80mm
Productivity	20-30m³	30-35m³	50-60m³	80-90m³
Total power	50kw	60kw	70kw	90kw
Aggregate	±2%	±2%	±2%	±2%
Cement	±1%	±1%	±1%	±1%
Flyash	±1%	±1%	±1%	±1%
Water	±1%	±1%	±1%	±1%
Additive	±1%	±1%	±1%	±1%

More customized production capacity for mixing stations

Model	JS1000	JS1500	JS2000	JS3000
Discharge capacity	1000L	1500L	2000L	3000L
Feed capacity	1600L	2400L	3200L	4800L
Maximum aggregate size	60mm/80mm	60mm/80mm	60mm/80mm	60mm/80mm
Productivity	50-60m³	80-90m³	100-120m³	150-180m³
Total power	70kw	90kw	140KW	210kw
Aggregate	±2%	±2%	±2%	±2%
Cement	±1%	±1%	±1%	±1%
Flyash	±1%	±1%	±1%	±1%
Water	±1%	±1%	±1%	±1%
Additive	±1%	±1%	±1%	±1%

Product Advantages
1. Small footprint: Compact structure, lower temporary land rent.
2. Eco-friendly: Dust & noise control, compliant with environmental rules.
3. Flexible output: Adjustable capacity to match varying site demand.
4. Quick setup: Pre-assembled, fast on-site installation.
5. All-weather use: Reliable continuous production under diverse climates.

Yuandong Machinery Service Assurance

1. Remote tech support: 24/7 video guidance for installation & maintenance.
2. Original spare parts: Global direct delivery of genuine components.
3. Full documents: English manuals, drawings and operation videos included.
4. Remote troubleshooting: Fast fault diagnosis via online video.
5. Lifetime online service: Persistent technical consultation anytime.


About Yuandong Machinery

Zhengzhou Yuandong Machinery Manufacturing Co., Ltd. is a construction machinery manufacturer integrating R&D, production, and sales with over 20 years of development history. The company has a production area of 8,000m³, more than 300 employees, and offers over 1,000 product models.

Complementary Product Series
We have steel bar processing machinery,road machinery,concrete mixing-conveying machinery,JS Forced Concrete Mixer,JS Twin Shaft Concrete Mixer,Heavy Mining Machinery and other construction machinery and equipment.
Quality Assurance:
Our equipment undergoes strict testing and inspection before leaving the factory.
Additionally, the customized colors and logo details are included.
Customization and Product Services
Yuandong Machinery With modern production processes and a professional R&D design team, Our has provided product and technical support for landmark buildings in many cities, and its products are sold both domestically and internationally.
