The Premium Concrete Mixing Plant HZS-60: Empowering Commercial Concrete Plants with Integrated Automated Dosing System, Achieving Stable Mix Quality and Continuous Mass Production for Bridge & Airport Construction

The Premium Concrete Mixing Plant HZS-60: Empowering Commercial Concrete Plants with Integrated Automated Dosing System, Achieving Stable Mix Quality and Continuous Mass Production for Bridge & Airport Construction

The High-performance Concrete Mixing Station HZS-60 adopts a fully modular integrated design for fast on-site installation and disassembly, requiring no complex civil foundation work. Equipped with an independent PLC intelligent control system, it achieves automatic weighing, batching, mixing and discharging of sand, stone and cement. Precisely calibrated weighing sensors stabilize concrete mixing ratios and eliminate quality fluctuations from manual proportioning errors. Sealed dust and noise reduction structures enable compliance with strict environmental standards for urban commercial concrete bases and municipal construction sites.

Fitted with a heavy-duty twin-shaft forced mixer, this model delivers powerful mixing force and uniform concrete quality for long-term stable commercial concrete production. Core wearing parts including mixing arms, liners and conveyor belts adopt thickened wear-resistant materials to extend service life and reduce maintenance. It flexibly matches various silos and auxiliary equipment, adapting to highways, airports and interchange projects to shorten construction cycles and reduce contractors’ comprehensive production costs.

Product Description

Product Advantages

·Balanced Hourly Production for Medium Fixed Projects

With stable 60m³/h theoretical productivity and a 60-second short mixing cycle, it delivers continuous steady output to meet medium municipal, road and factory construction needs, balancing production capacity and site occupation perfectly.

·JS1000 Twin-shaft Mixer with Dual Drive Power

Adopts JS1000 forced twin-shaft mixer driven by dual 18.5kw motors. Powerful stirring ensures uniform commercial concrete mixing, supporting aggregate sizes up to φ80mm for wide raw material compatibility.

·Four-compartment Aggregate Bin Improves Raw Material Classification

Equipped with four 6m³ aggregate bins for classified storage of different sand and stone materials. It avoids mixing defects, improves batching accuracy and adapts to complex concrete formula production.

·High-efficiency Feeding & Cement Conveying System

It features 100m³/h aggregate feeding and 40t/h spiral cement conveying capacity. Fully automatic weighing and conveying minimize manual intervention and proportion errors for stable batch concrete quality.

·Standard 4m Discharge Height Fits All Common Transit Mixers

The 4m standard discharge height perfectly matches mainstream concrete transport vehicles. No extra unloading ramps are required, saving civil costs and improving on-site loading efficiency.

·Moderate Total Installed Power for Energy Saving

The 120kw total installed power is reasonably distributed to fit actual operating loads. It effectively reduces daily power consumption and long-term operating costs compared with larger mixing station models.

Product Parameters

Model	HZS-25	HZS-35	HZS-50	HZS-60	HZS-75	HZS-90	HZS-120	HZS-180
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h
Mixing host model	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000
Mixing host power	18.5kw	30kw	37kw	2×18.5kw	44kw	60kw	37kw×2	55kw×2
Cycle period	72s	72s	60s	60s	60s	60s	60s	60s
Blender nominal capacity	500L	750L	1000L	1000L	1500L	1500L	2000L	3000L
Maximum aggregate size	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm	φ80mm
Ingredient capacity	800L	1600L	100m³/h	100m³/h	150m³/h	150m³/h	3200L	300m³/h
Aggregate bin capacity	6m³×3	6m³×3	6m³×3	6m³×4	12m³×3	12m³×4	18m³×4	25m³×4
Types of aggregates	3	3	3	4	3	4	4	4
Aggregate productivity	100m/h	100m/h	100m/h	100m/h	150m/h	150m/h	200m/h	300m/h
Spiral productivity	40t/h	40t/h	40t/h	40t/h	40t/h	65t/h	65t/h	120t/h
Discharge height	3.8m	3.8m	3.8m	4m	4m	4m	4m	4m
installed capacity	65kw	65kw	120kw	120kw	150kw	165kw	210kw	295kw

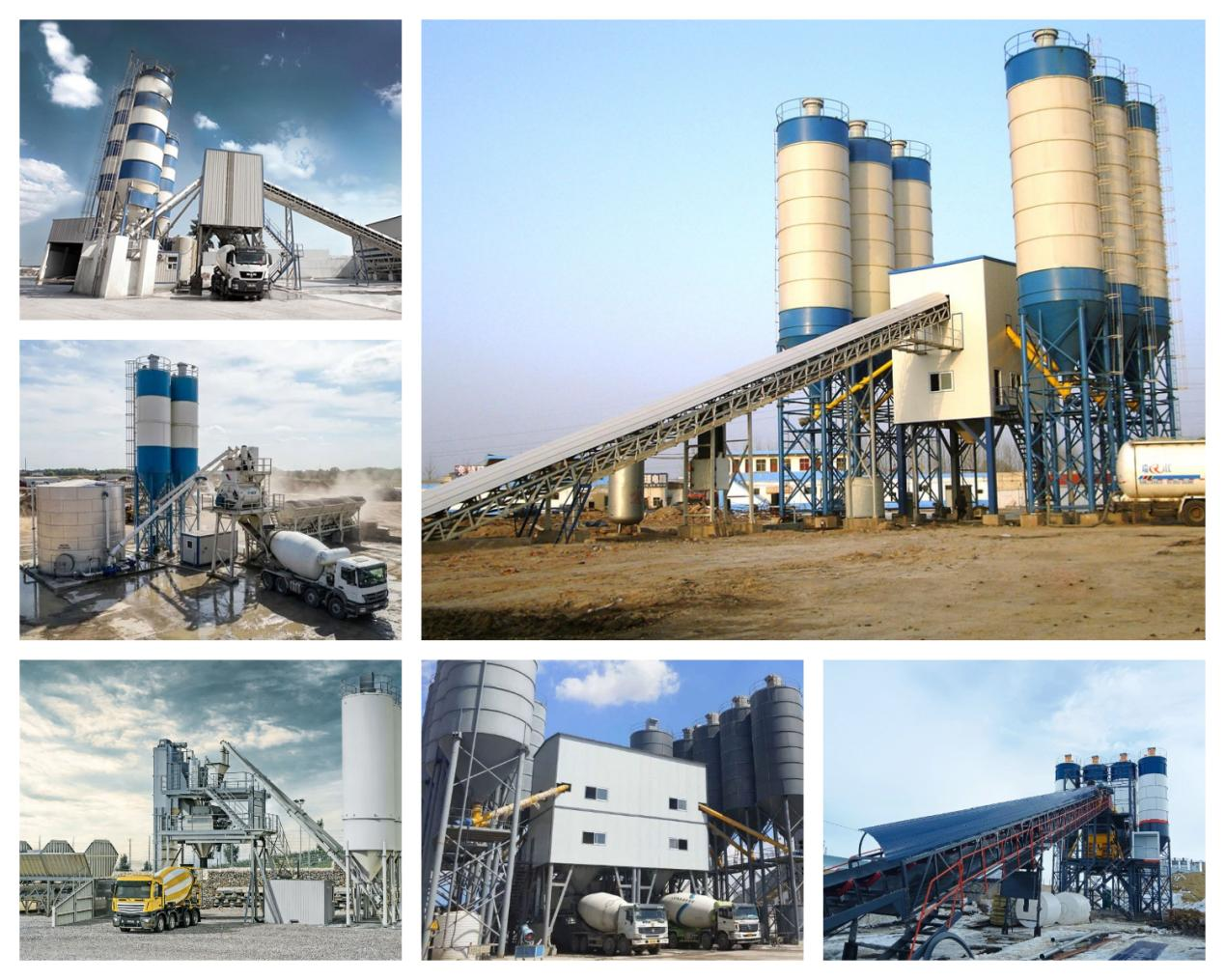

Application scenarios

A professional Concrete mixing plant is the core facility for standardized, large-scale concrete construction, solving many drawbacks of scattered manual mixing and temporary field mixing equipment. Its centralized production mode achieves unified batching, precise proportioning and stable mixing standards. It avoids concrete quality instability caused by human error and irregular operation, providing consistent finished concrete for municipal engineering, road and bridge construction, industrial parks and commercial concrete projects. Its sealed structure optimizes the construction environment, meets urban environmental protection standards and supports long-term stable fixed-point production.

The modular integrated design of the Concrete mixing plant greatly improves project controllability and economic benefits. Its fully automatic intelligent control system realizes unmanned batching, feeding and mixing, effectively cutting on-site labor and management costs. Standardized production reduces sand, stone and cement waste and shortens construction cycles. For contractors and concrete manufacturers, the Concrete mixing plant guarantees stable project quality and progress, lowers long-term operating costs, and delivers reliable core value for medium and large infrastructure construction.

Service Support

·Free Technical Consultation & Customization

We provide professional project planning and equipment configuration based on your specific site conditions and production requirements.

·Detailed Engineering Drawings & Remote Video Guidance

We provide complete 3D foundation drawings, layout designs, and step-by-step installation videos, accompanied by live remote video guidance to ensure your team can complete the assembly smoothly.

·Comprehensive Operator Training

We offer systematic training on equipment operation, routine maintenance, and safety protocols to help your team master the machinery quickly and safely.

·24/7 Fast-Response Technical Support

Our dedicated technical team is available 24/7 online to provide troubleshooting and technical guidance, ensuring minimal downtime for your project.

·Lifetime Original Spare Parts Supply

We maintain a full inventory of high-quality original spare parts with fast global shipping, ensuring your equipment stays in optimal condition throughout its lifecycle.
