Automatic steel bar straightening and cutting machine
Home> Products >  Steel bar equipment >  Automatic steel bar straightening and cutting machine
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year

Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year

Automatic high-speed rebar straightening and cutting machine. 1-year warranty. Ideal for construction and steel processing.

Precision Cutting
Length adjustment via positioning key ensures no cutting errors. Double-head pulling design straightens to the last meter.

Durable Components
Tungsten steel mold and three-motor system with hydraulic drive for high speed, precision, and low noise.

Wide Application
Suitable for hot/cold rolled steel, low carbon steel, steel wire, and copper wire.

Get a Quote

Product Description

Automatic Fast Speed Rebar Straightening And Cutting Machine For Construction Long Warranty 1 Year
Wire Cutting Machine Rebar Straightening Machine Steel Bar Straightening Machine 6-19mm Used Rebar Straightening Machine Cutting Machine
Why Choose Us
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year supplier
Product Overview
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year details

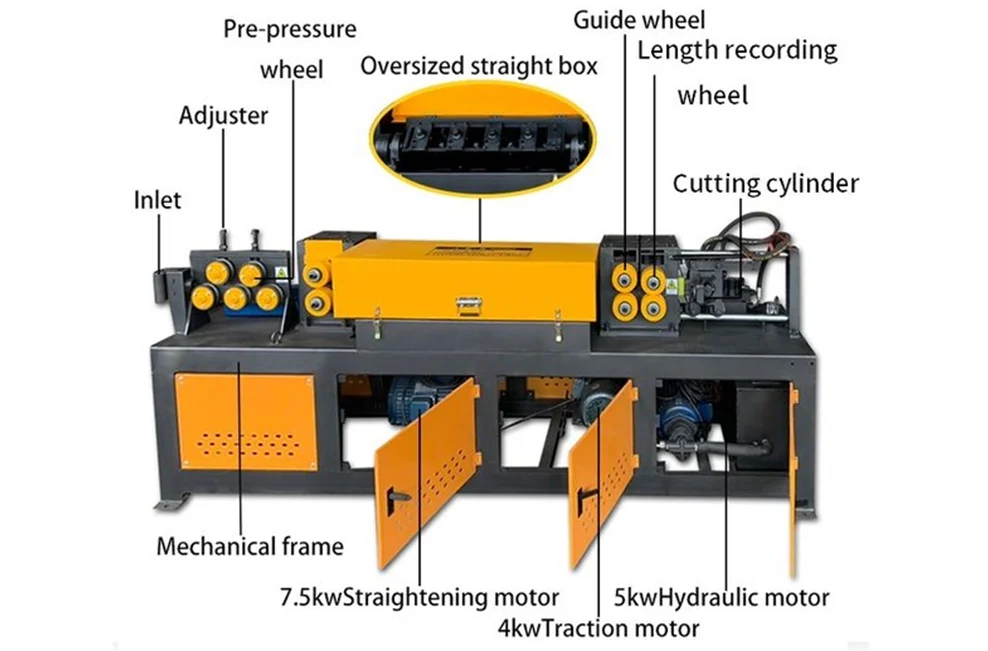

The structure of the machine is that the angle of the straight wire die is adjusted by the high-speed rotor rotation to achieve the effect of straightening, and then the wire is fed forward through the wire feeding wheel. After reaching the required size,the wire touches the positioning key and pushes the runway forward by 5 mm. The upper punch presses the vertical wire cutter and cuts it immediately. The wire presses the opening bearing through the pressure plate on the vertical wire cutter, and the wire automatically falls to the Wire rack, if you want to change the length, move the positioning key.
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year factory
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year supplier
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year factory
Model
GT6-14B
GT5-14
GT6-12A
6-10
Motor speed
2860r/min
2860r/min
2860r/min
2860r/min
Motor Power
7.5+4+4kW
11kw
9kw
7.5kw
Rated voltage
380V
380v
380v
380v
Overall size
2820*720*1080mm
2000*750*1160mm
1300*650*950mm
1300*650*950mm
Straighten, round steel
6-14mm
6-14mm
6-12 mm
6-10mm
Straightening, rebar
6-12mm
6-12mm
6-10mm
6-8mm
Total Weight
800KG
480kg
240kg
260kg
Box Size
50*29*86cm
41*31*85cm
38*32*61cm
38*32*61cm
Straightening rate
45-65m/min
45/65m/min
35-50m/min
35-50m/min

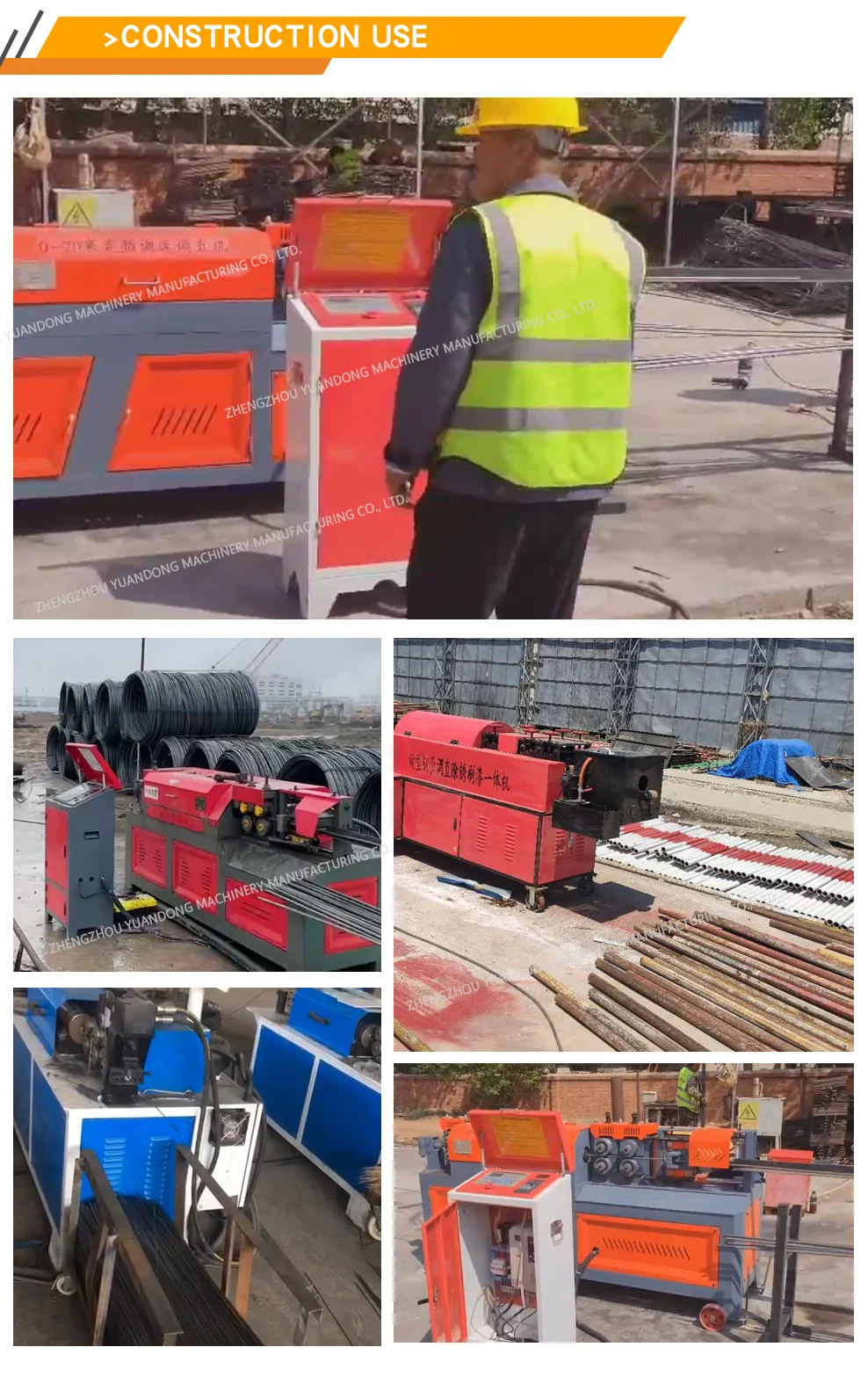

Construction Use
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year details
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year factory
Advantage:Manufacturer Direct Sale Round Bar Rebar Straightener And Cutter 380V Three Phase Steel Bar Straightening And Cutting Machine
1. There is no error in cutting the length of the steel bar .
2. Double head pulling type rebar straightener，steel bar straightener and cutter.
3. Until the last meter of steel bars are adjusted and pulled out.
4. The construction wire adopts tungsten steel mold.
5. The machine uses three motors, with low noise, hydraulic system brings high speed and high precision.
6.Applicable to hot/cold rolled steel,low carbon steel ,steel copper wire.Steel Bar Straightening And Cutting Machine
Customer Feedback
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year details
Shop Certificate
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year details
Packaging&Shipping
Automatic Fast Speed Rebar Straightening and Cutting Machine for Construction Long Warranty 1 Year manufacture
Best Selling
FAQ
1. Do you have your own factory?
We have our own factory with 10 years of experience in trailer production. We also own a truck modification factory.
2. How long does it take for an order to be delivered?
15 to 20 working days after we receive your 30% advance payment or 100%. The specific delivery time depends on the items and quantity of the order.
3. Can I get a sample or order 1 set?
Yes, our MOQ is 1 set.
4. When is the delivery time?
If it is a standard model (stock product), we can ship within 10 days after payment. If it is a customized trailer or truck, we can ship after production is completed after payment. Usually it takes 10-20 days to complete shipment.
5. What are your payment terms?
T/T: T/T pays 30% deposit, 70% balance should be paid before shipment. L/C: 100% irrevocable L/C at sight.
