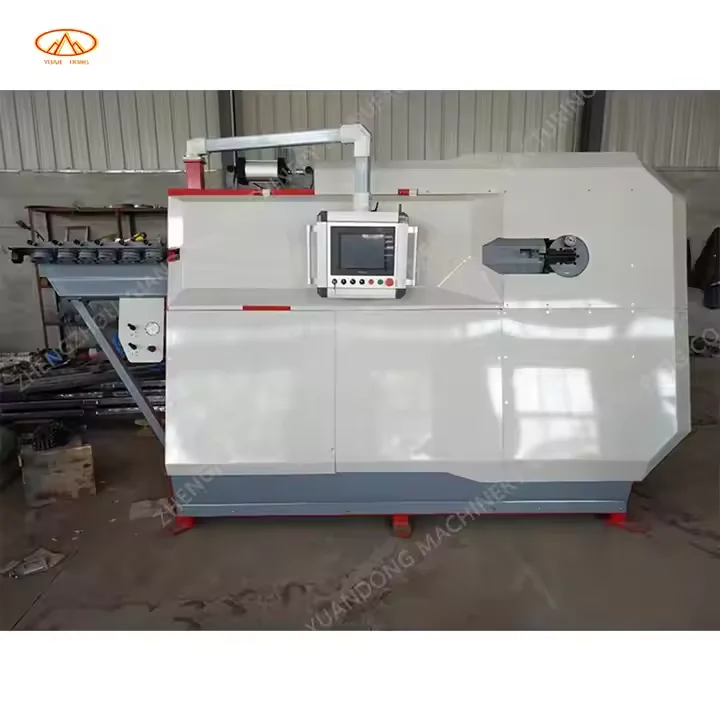

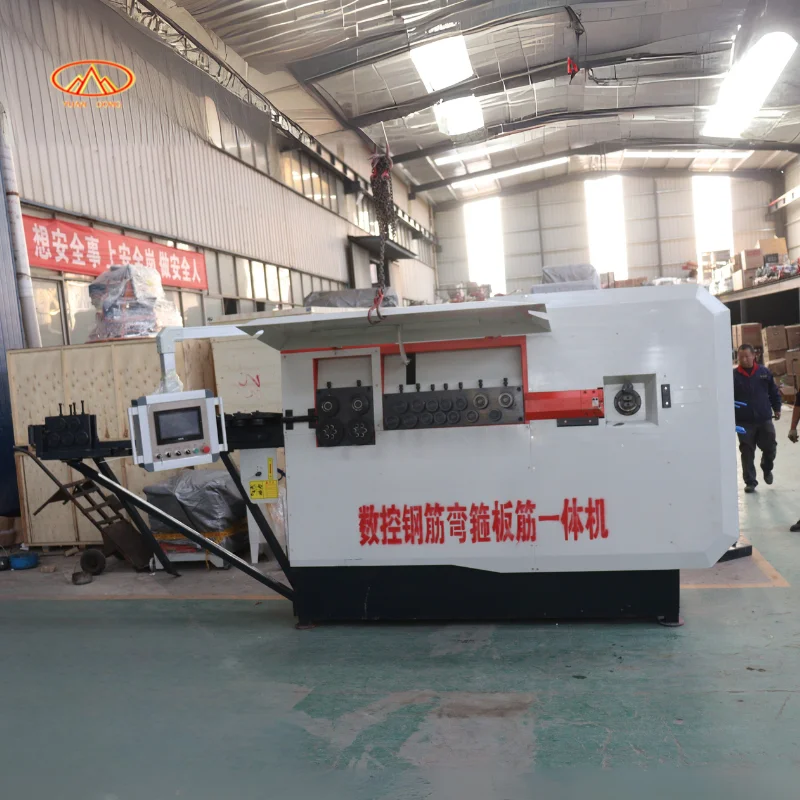

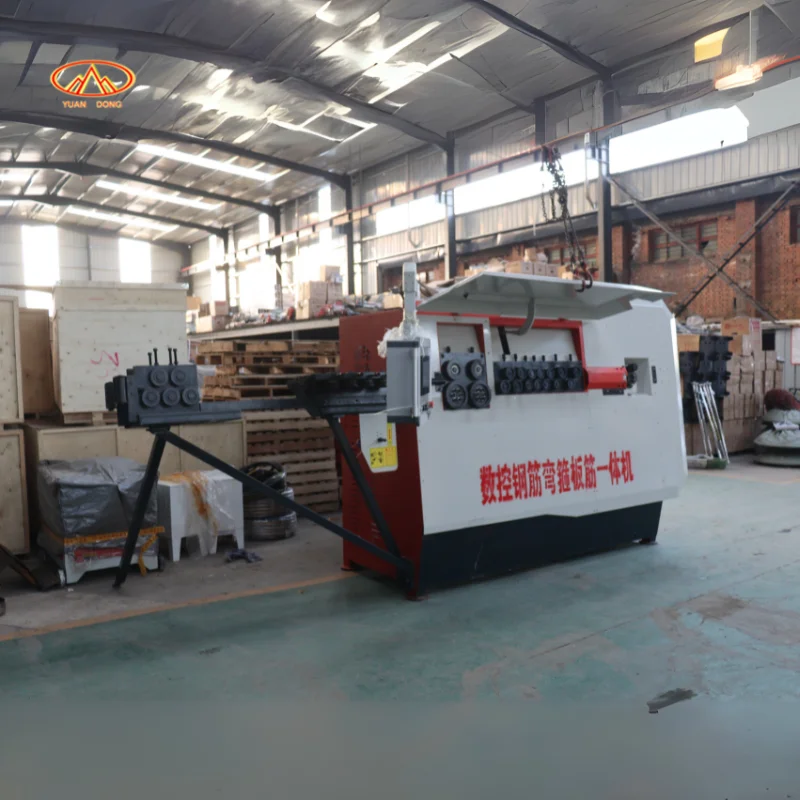

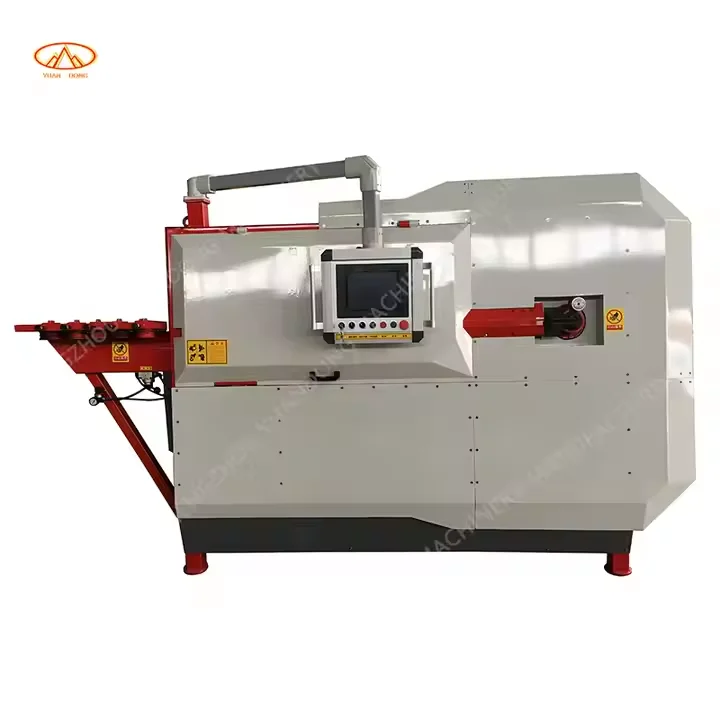

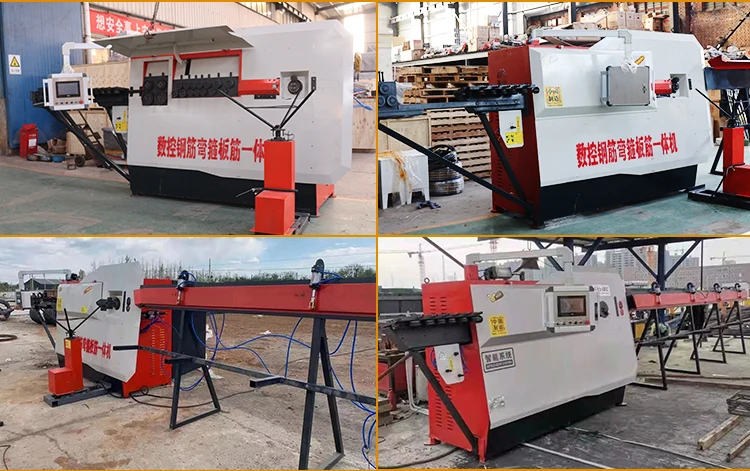

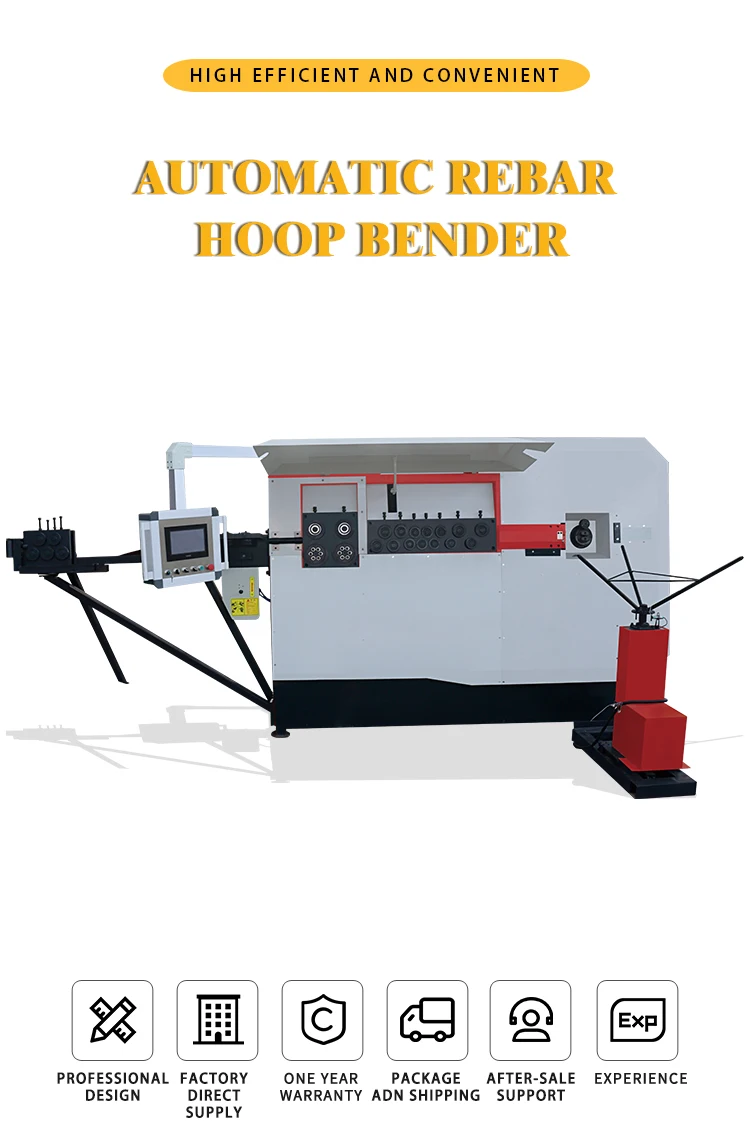

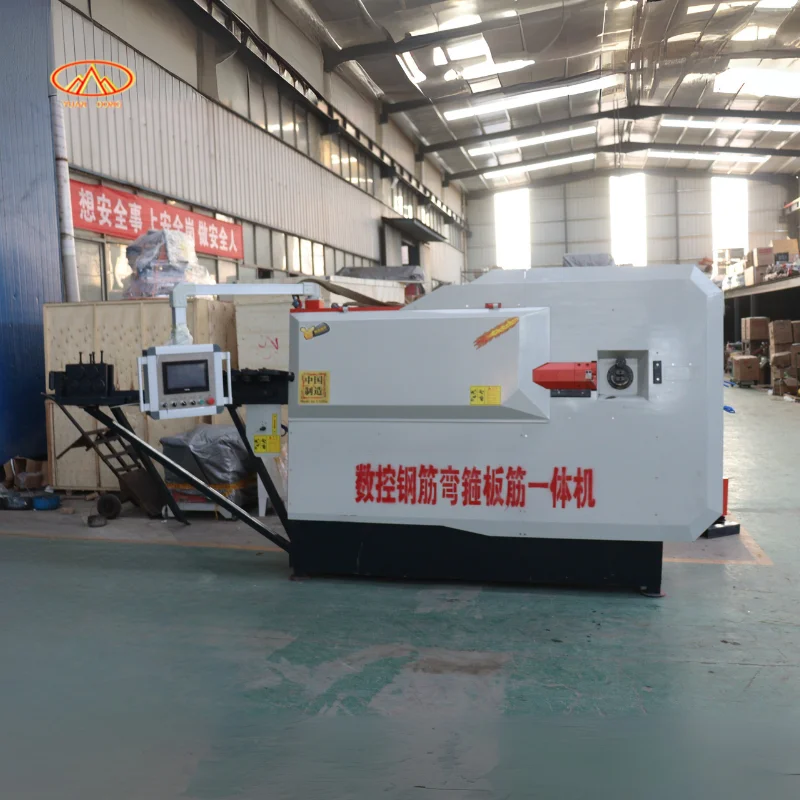

CNC automatic stirrup bender with servo control. Straightens, cuts, and bends steel bars up to 14mm diameter. 1-year warranty.
Multi-Function Operation

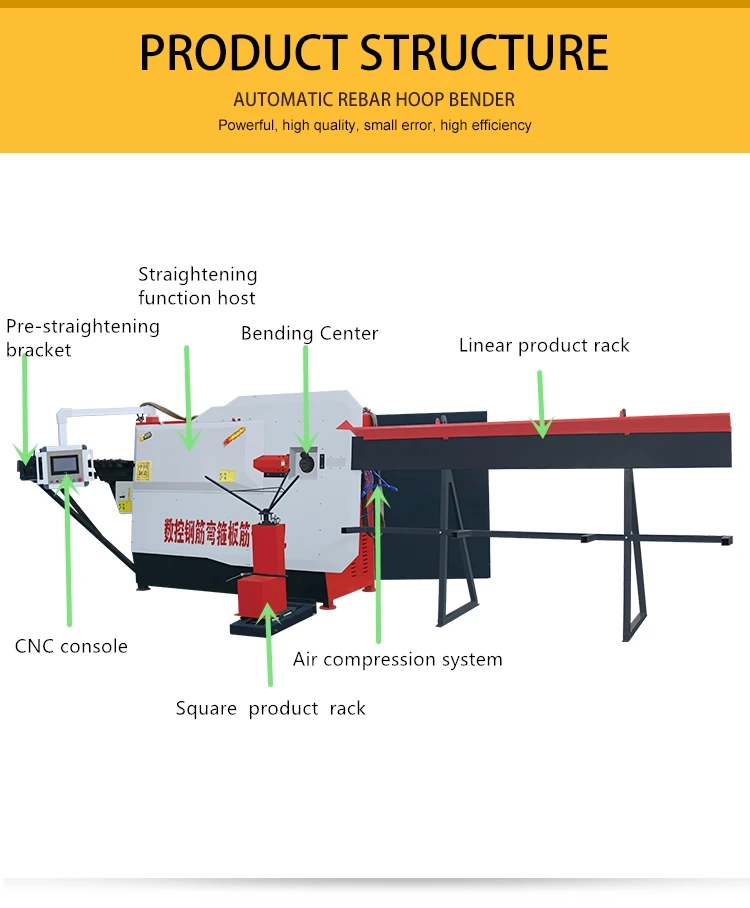

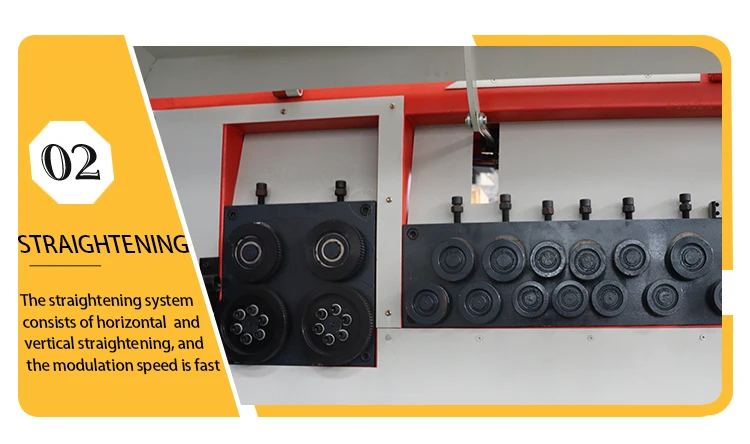

Integrates straightening, cutting to length, hoop bending, and cutting in one automated process.
High Precision

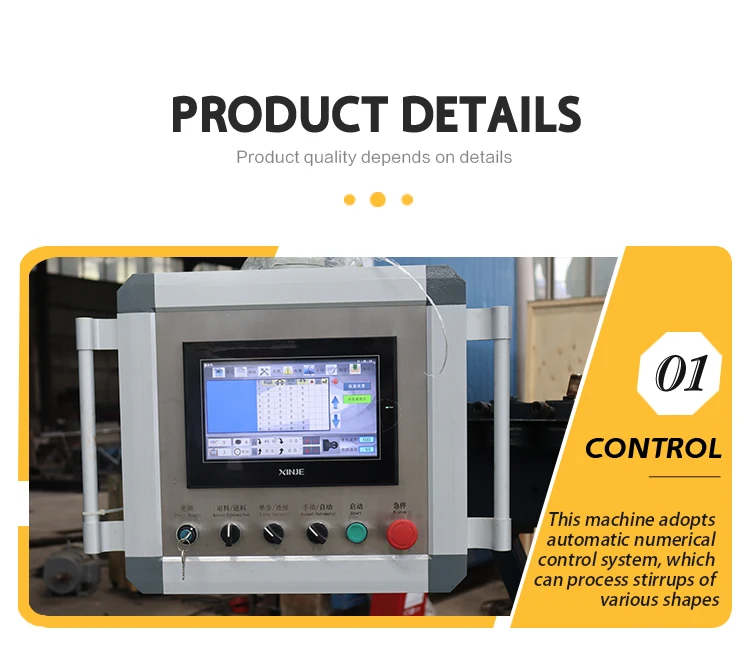

CNC servo control system enables continuous production of any planar shape with consistent accuracy.
Safe Packaging
Wooden and iron box packaging ensures product safety. Multiple shipping ports for fast delivery.
Model |
RM4-12 |
RM-12B |
RM-13S |
Process single line |
4-10mm(round bar)
4-8mm(thread bar)
|
4-12mm(round bar)
4-10mm(thread bar)
|
4-14mm(round bar)
4-12mm(thread bar)
|
Process double line |
4-8mm(round bar)
4-6mm(thread bar)
|
4-10mm(round bar)
4-8mm(thread bar)
|
4-12mm(round bar)
4-10mm(thread bar)
|

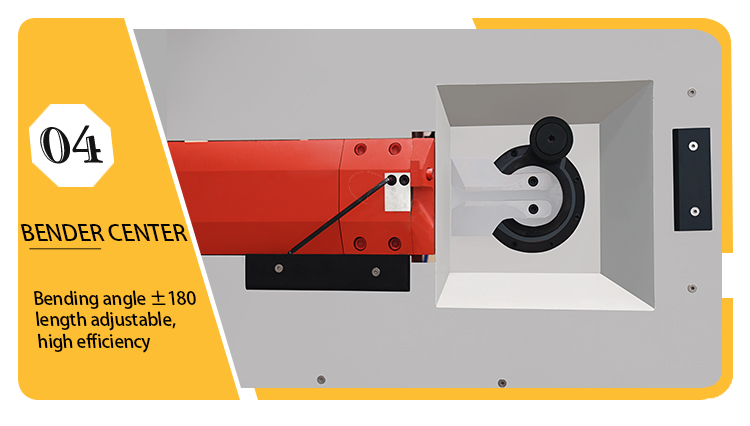

Bending Angle |
180° |
±180° |
±180° |
Overall Size |
320*95*175cm |
530*110*190cm |
540*110*190cm |
Total weight |
1680kg |
2200kg |
2200kg |
Average power consumption |
3-5kw/h |
5kw/h |
5kw/h |
