220V Single Phase Mortar Sprayer With Piston Pump Cement Plaster Spray Machine German

220V Single Phase Mortar Sprayer With Piston Pump Cement Plaster Spray Machine German

220V single-phase mortar sprayer with piston pump. German technology for cement and plaster applications.

Precision Spraying
Pneumatic motor drives stable piston movement. Paint is pressurized and atomized through spray gun for even coating.

Versatile Use
Suitable for leather goods, gift packaging, furniture, footwear, and automotive manufacturing industries.

Efficient Operation
Airflow control enables continuous reciprocating motion with high-pressure hose delivery for consistent results.

Product Description

220V Single Phase Mortar Sprayer With Piston Pump Cement Plaster Spray Machine German

Product Presentation

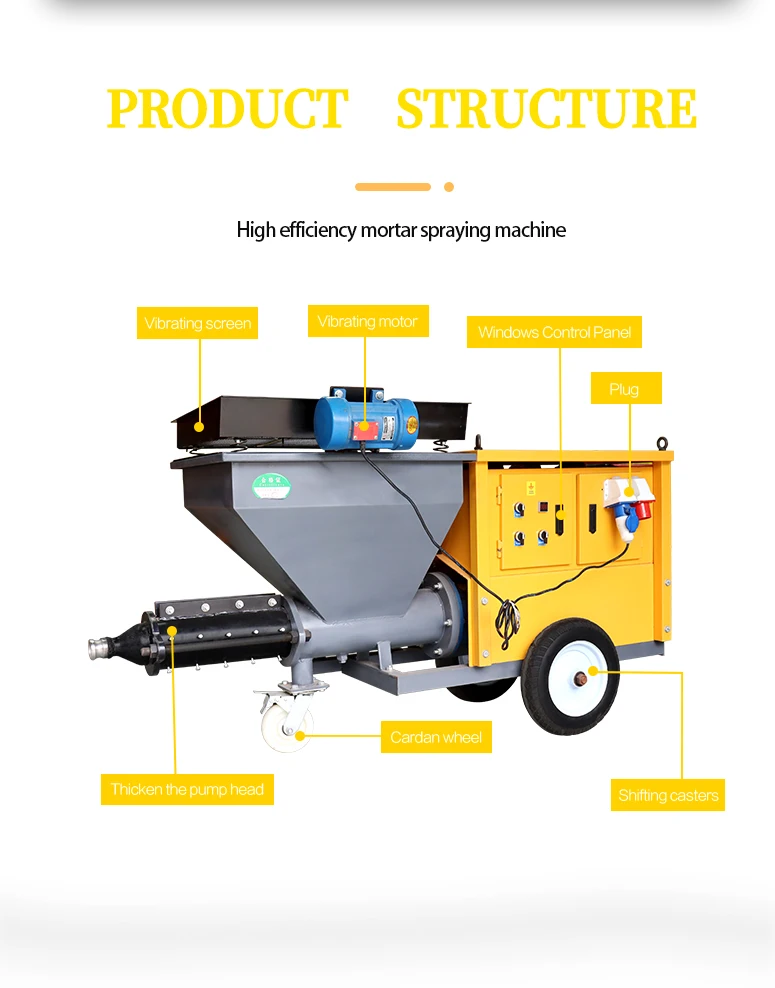

Spraying machine is a specialized coating equipment that uses spraying technology. Its principle is to control the airflow to instantly push the air distribution reversing device to reverse direction, thereby enabling the piston of the pneumatic motor to perform stable and continuous reciprocating motion. Pressurize the inhaled paint and transport it to the spray gun of the spraying machine through a high-pressure hose. The spray gun instantly atomizes the paint and releases it onto the surface of the coated object. The spraying machine mainly consists of a feeding device, a spray gun, and an atomization generator. Suitable for industries such as leather handbags, gift packaging, furniture, footwear, and automotive manufacturing.

Product Overview

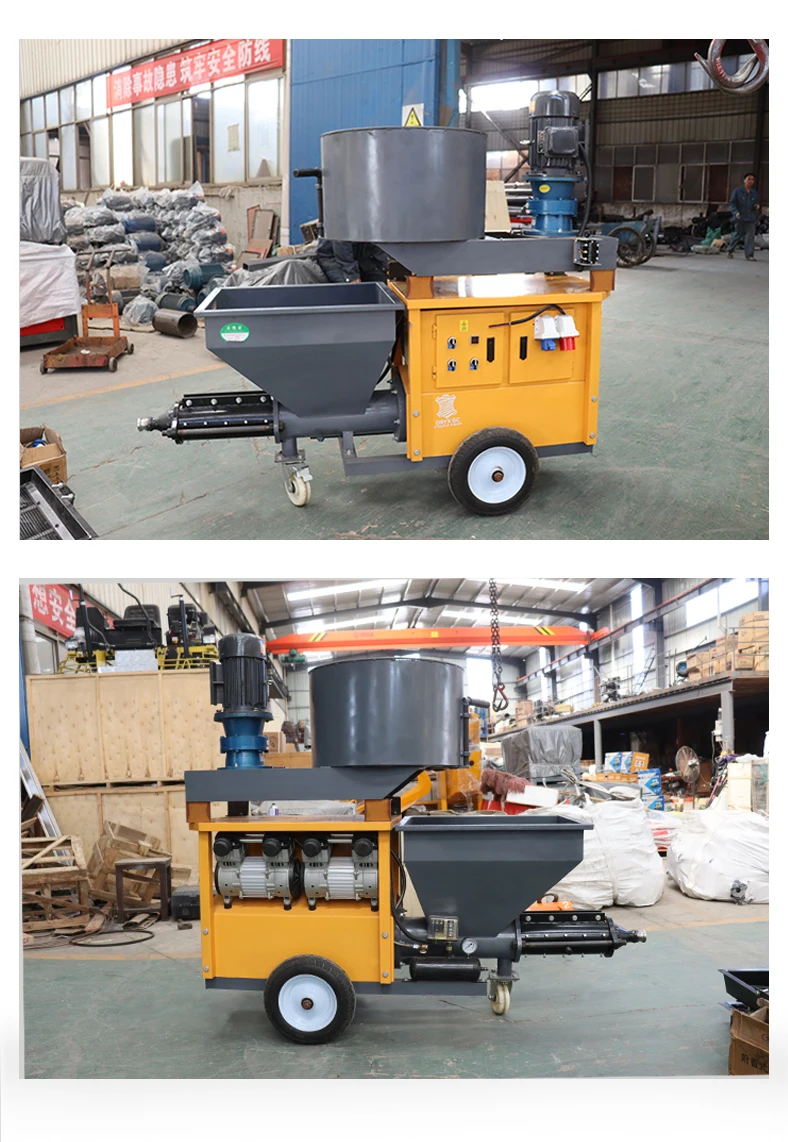

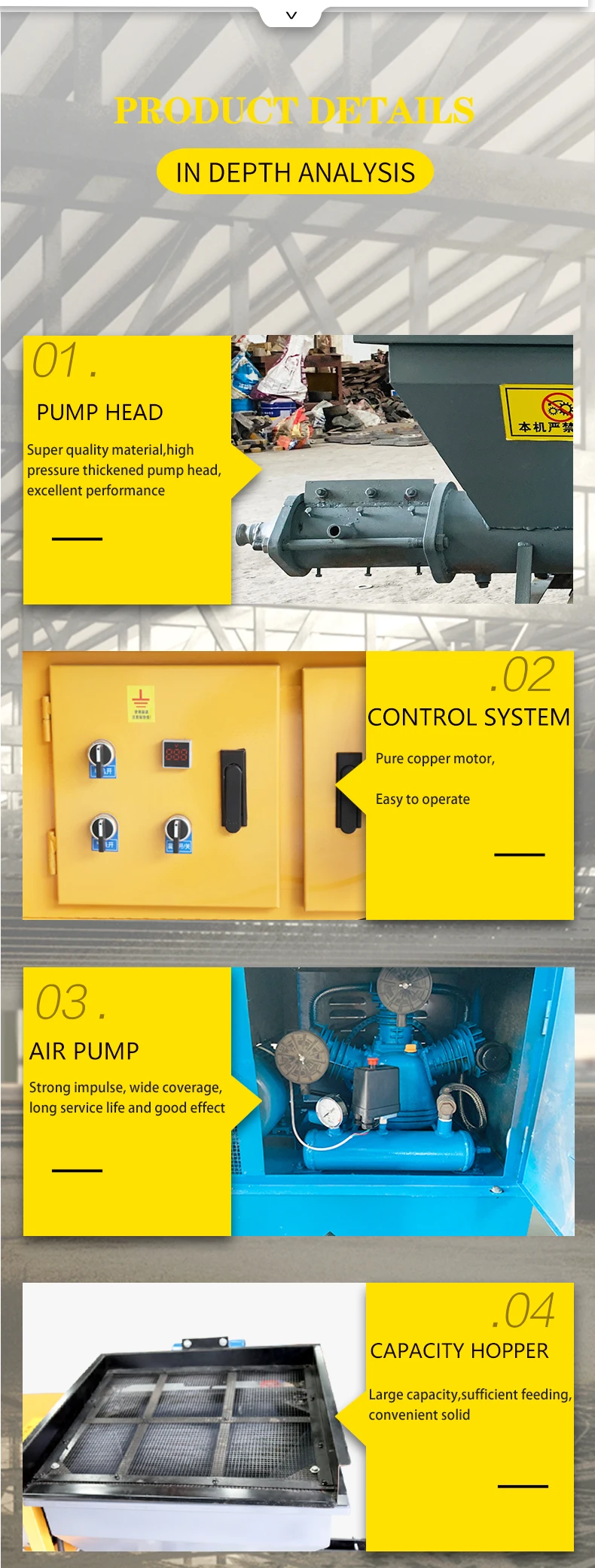

220V Single Phase Mortar Sprayer With Piston Pump Cement Plaster Spray Machine German details

Model Parameters

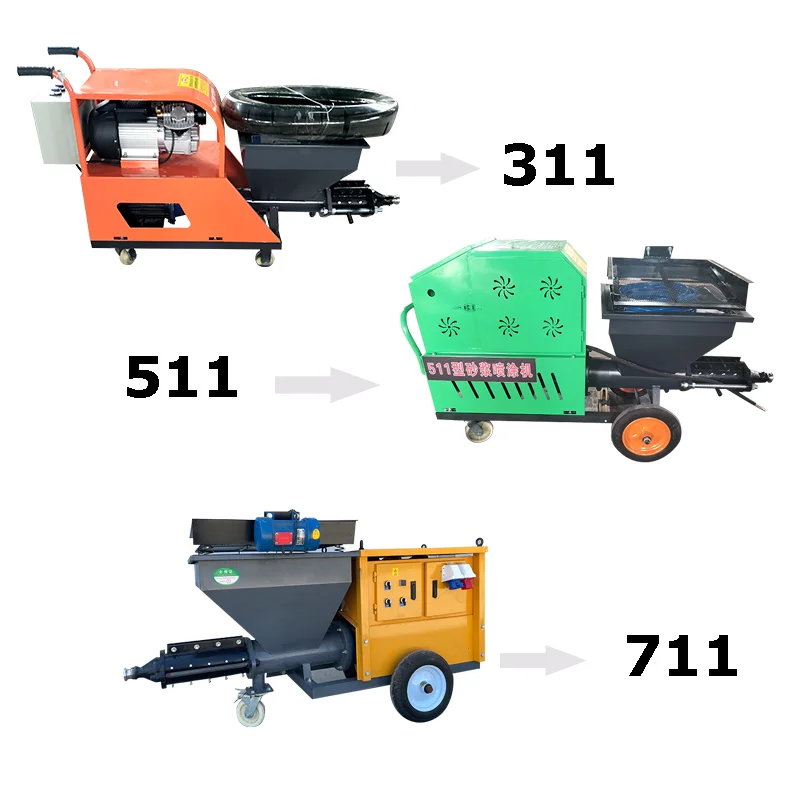

Model	311	511	711
Conveying Pipe Diameter	32 mm	38 mm	38 mm
Air Pump Power	2.2kw	2.2 kw	2.2 kw
Motor Power	4 kw	7.5 kw	7.5 kw
Voltage	380V Three Phase Electric/Diesel Engine(customized)	380V Three Phase Electric/Diesel Engine(customized)	380V Three Phase Electric/Diesel Engine(customized)
Spraying Area	150-170 m²/h	180-200 m²/h	220 m²/h
Working Pressure	5-8 mpa	5-8 mpa	5-8 mpa
Conveying Flow	3 m³/h	3 m³/h	4 m³/h
Water:Cement:Sand	1:1:3	1:1:3	1:1:3
The Maximum Passing Particle	4 mm	4 mm	4 mm
Maximum Vertical Distance	10-15 m	15-20 m	20-25 m
Maximum Horizontal Distance	25-35 m	30-40 m	40-50 m
Overall Dimensions	1600450900 mm	17006001100 mm	18006501000 mm
Total Weight	150 kg	300 kg	360 kg
Scope of Application	motar,putty,paint,etc	motar ,putty,paint,etc	motar ,putty,paint,etc
